0015247040

Affinity Medical Technologies - a Molex company

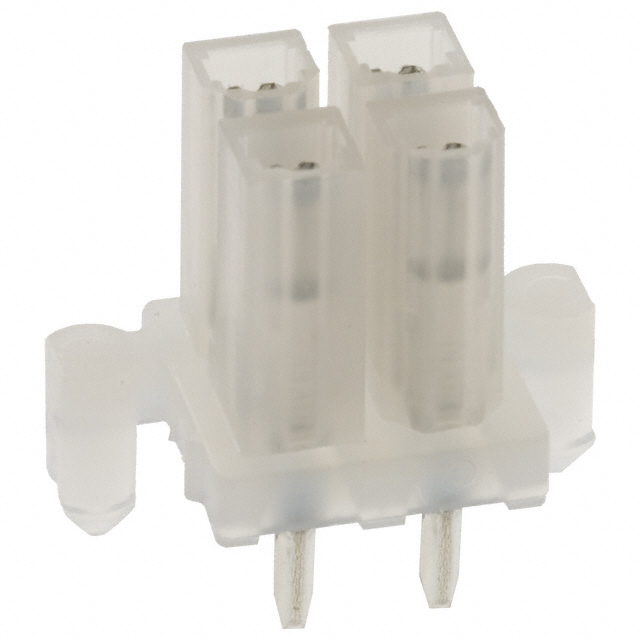

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015247040
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 4POS 4.2MM VERT TIN
Datasheets:	0015247040.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62770 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62770 pcs

Reference Price (In US Dollars)

1 pcs: $0.499

10 pcs: $0.438

100 pcs: $0.378

500 pcs: $0.309

3120 pcs: $0.249

6240 pcs: $0.24

12480 pcs: $0.223

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.499

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015247040

Part Number	0015247040	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 4POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62770 pcs	Data sheet	0015247040.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	Mini-Fit BMI 42385
Row Spacing - Mating	0.165" (4.20mm)	Pitch - Mating	0.165" (4.20mm)
Packaging	Tray	Other Names	0015-24-7040 0015-24-7040-E 0015247040-E 15-24-7040 15-24-7040-E 15-24-7040-P 15-24-7040-TR338 15247040 15247040-E A-42385-04A1 WM17600
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.446" (11.33mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Push-Pull
Detailed Description	4 Position Receptacle Connector 0.165" (4.20mm) Through Hole Tin	Current Rating	-
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	General Purpose, Industrial, Medical, Telecommunications
