0010897181

Affinity Medical Technologies - a Molex company

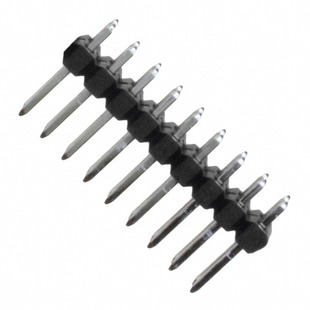

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0010897181
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR DUAL 18POS .100 SRT TIN
Datasheets:	1.0010897181.pdf 2.0010897181.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57330 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57330 pcs

Reference Price (In US Dollars)

1 pcs: $0.60

10 pcs: $0.544

25 pcs: $0.511

50 pcs: $0.488

100 pcs: $0.466

250 pcs: $0.422

500 pcs: $0.388

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.60

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0010897181

Part Number	0010897181	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR DUAL 18POS .100 SRT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57330 pcs	Data sheet	1.0010897181.pdf 2.0010897181.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 70280	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.437" (11.10mm)	Other Names	0010-89-7181 0010-89-7181-E 0010897181-E 10-89-7181 10-89-7181-E 10897181 10897181-E WM26918 WM26918-ND WM50022-18
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.090" (2.29mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 18 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.107" (2.71mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
