0010181038

Affinity Medical Technologies - a Molex company

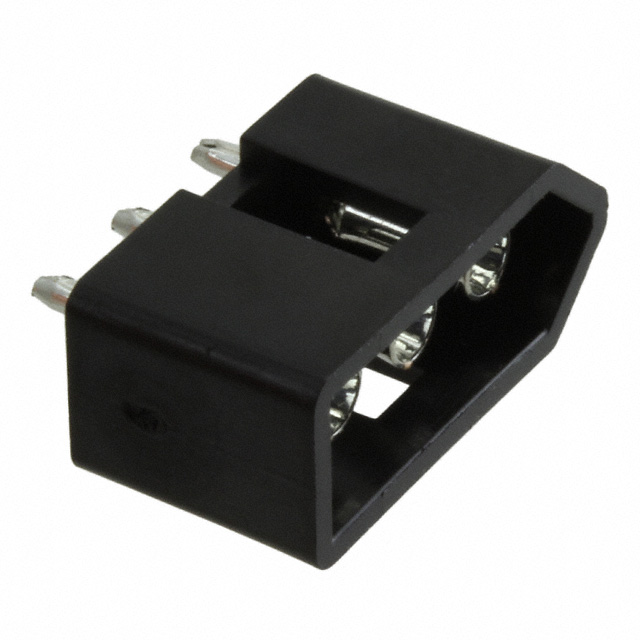

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0010181038
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	TERM BLK SKT 3POS 2.36MM
Datasheets:	1.0010181038.pdf 2.0010181038.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75197 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 75197 pcs

Reference Price (In US Dollars)

1 pcs: $0.524

10 pcs: $0.475

100 pcs: $0.407

500 pcs: $0.339

1000 pcs: $0.291

5000 pcs: $0.258

10000 pcs: $0.252

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.524

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0010181038

Part Number	0010181038	Manufacturer	Affinity Medical Technologies - a Molex company
Description	TERM BLK SKT 3POS 2.36MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75197 pcs	Data sheet	1.0010181038.pdf 2.0010181038.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Board or Cable	Series	3099
Row Spacing - Mating	-	Pitch - Mating	0.198" (5.03mm)
Packaging	Bulk	Other Names	0010-18-1038 001018-1038 0010181038-ND 010-18-1038 01018-1038 010181038 10181038 A-3099-P3E WM13099
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.421" (10.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	3 Position Header Connector 0.198" (5.03mm) Through Hole Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.170" (4.32mm)
Contact Finish Thickness - Post	50.0µin (1.27µm)	Contact Finish Thickness - Mating	50.0µin (1.27µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Telecommunications
