0010085121

Affinity Medical Technologies - a Molex company

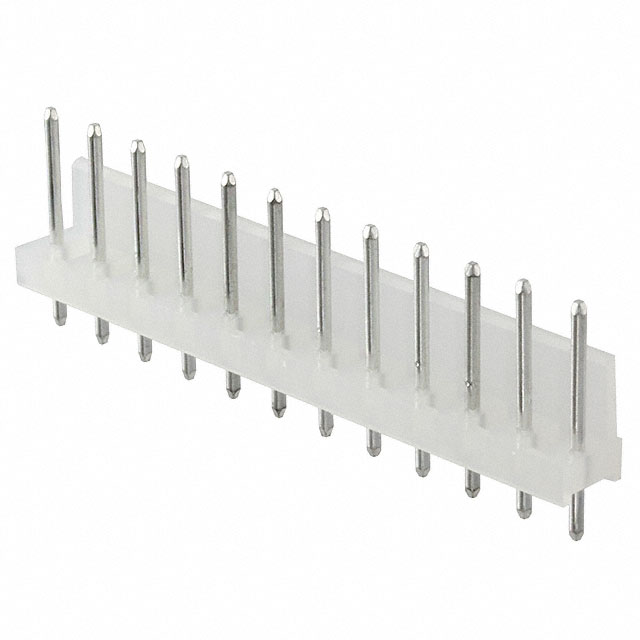

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0010085121
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS VERT TIN
Datasheets:	0010085121.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	68646 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 68646 pcs

Reference Price (In US Dollars)

1 pcs: $0.564

10 pcs: $0.51

100 pcs: $0.437

500 pcs: $0.364

1000 pcs: $0.312

5000 pcs: $0.277

10000 pcs: $0.271

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0010085121

Part Number	0010085121	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68646 pcs	Data sheet	0010085121.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 2599	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0010-08-5121 001008-5121 0010085121-ND 10-08-5121 10085121 2599M12A WM13097
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	30 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.375" (9.53mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 12 position 0.200" (5.08mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.175" (4.45mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
