0009781031

Affinity Medical Technologies - a Molex company

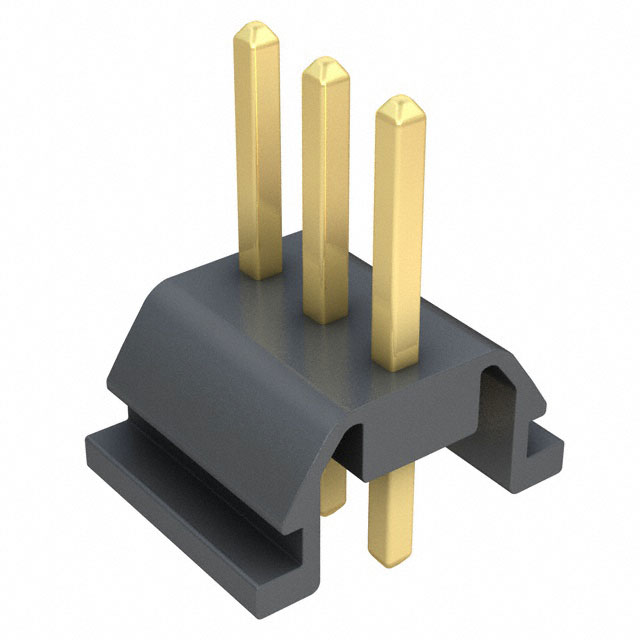

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009781031
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS VERT GOLD
Datasheets:	0009781031.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5279 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5279 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009781031

Part Number	0009781031	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5279 pcs	Data sheet	0009781031.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	KK 2220	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	1.380" (35.05mm)	Other Names	0009-78-1031 000978-1031 09-78-1031 09781031 A-2220-03A502
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Panel Mount, Snap-In; Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.250" (6.35mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Panel Mount, Snap-In; Through Hole 3 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.635" (16.13mm)	Contact Length - Mating	0.630" (16.00mm)
Contact Finish Thickness - Post	20.0µin (0.51µm)	Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
