0009652038

Affinity Medical Technologies - a Molex company

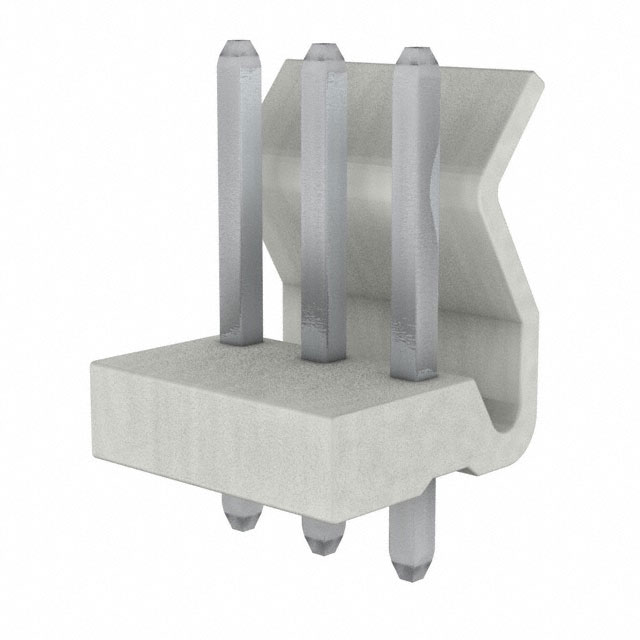

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009652038
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 3.96MM VERT TIN
Datasheets:	0009652038.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	267966 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 267966 pcs

Reference Price (In US Dollars)

1 pcs: $0.116

10 pcs: $0.108

100 pcs: $0.076

500 pcs: $0.065

1000 pcs: $0.054

5000 pcs: $0.046

10000 pcs: $0.043

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.116

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009652038

Part Number	0009652038	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 3.96MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	267966 pcs	Data sheet	0009652038.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 5273	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.687" (17.45mm)	Other Names	0009-65-2038 0009-65-2038-E 0009652038-E 09-65-2038 09-65-2038-E 09652038 09652038-E 5273-03A 9652038 WM18824
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.482" (12.25mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.419" (10.65mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
