0009523092

Affinity Medical Technologies - a Molex company

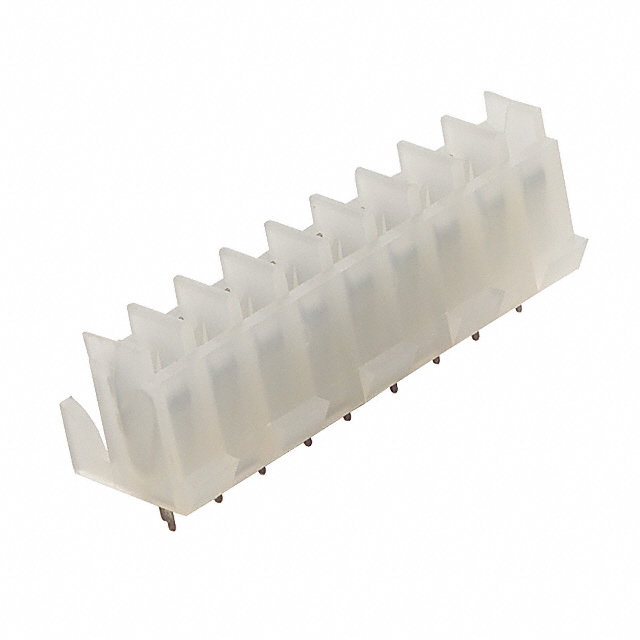

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009523092
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 9POS .156 VERT PCB
Datasheets:	0009523092.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3831 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3831 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009523092

Part Number	0009523092	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 9POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3831 pcs	Data sheet	0009523092.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 2145
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-52-3092 0009-52-3092-E 0009523092-E 09-52-3092 09-52-3092-E 09-52-3092-P 09523092 09523092-E A-2145-BA09H-P909 WM3406
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.449" (11.40mm)	Insulation Color	White
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	9 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin
Current Rating	4A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.160" (4.06mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle, Bottom Entry
Applications	Automotive, General Purpose, Medical, Telecommunications
