0009521030

Affinity Medical Technologies - a Molex company

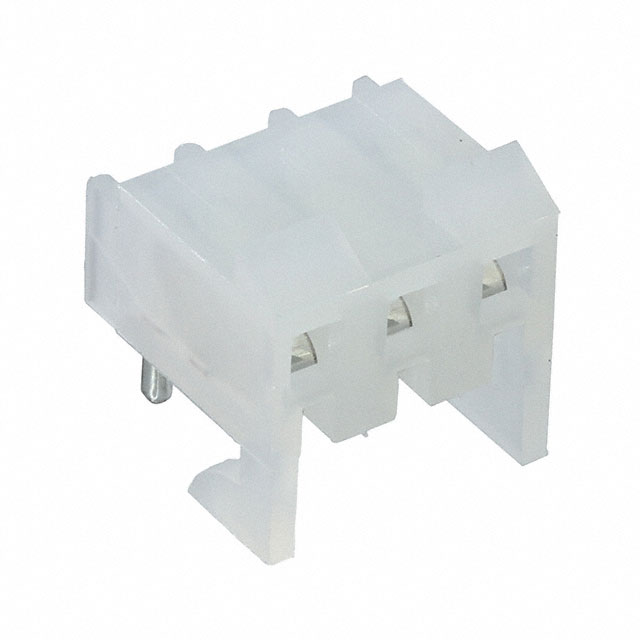

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009521030
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 156 PBC ASSY RTAN 03CKT TIN
Datasheets:	1.0009521030.pdf 2.0009521030.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6953 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6953 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009521030

Part Number	0009521030	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 156 PBC ASSY RTAN 03CKT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6953 pcs	Data sheet	1.0009521030.pdf 2.0009521030.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 2145
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-52-1030 000952-1030 009-52-1030 00952-1030 009521030 09-52-1030 A-2145-AA03N-197
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.308" (7.82mm)	Insulation Color	White
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	3 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin
Current Rating	5A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.145" (3.68mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle
Applications	Automotive, General Purpose, Medical, Telecommunications
