0009484109

Affinity Medical Technologies - a Molex company

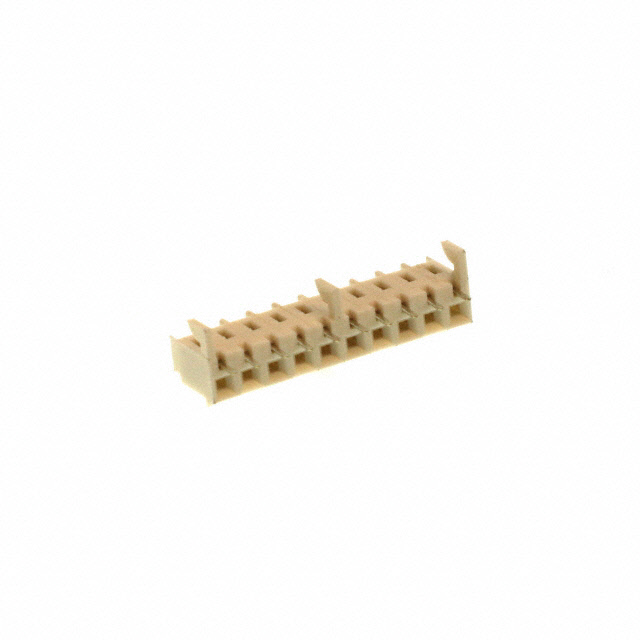

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009484109
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 10POS .156 VERT PCB
Datasheets:	0009484109.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30644 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30644 pcs

Reference Price (In US Dollars)

1 pcs: $1.004

56 pcs: $0.843

112 pcs: $0.803

504 pcs: $0.682

1008 pcs: $0.582

5040 pcs: $0.522

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.004

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009484109

Part Number	0009484109	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 10POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30644 pcs	Data sheet	0009484109.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-4109 0009-48-4109-E 0009484109-E 09-48-4109 09-48-4109-E 09484109 09484109-E 9484109 A-41815-0038 WM13407
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.449" (11.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	10 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin	Current Rating	4.5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.125" (3.18mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle, Bottom Entry	Applications	Automotive, General Purpose, Medical, Telecommunications
