0009483034

Affinity Medical Technologies - a Molex company

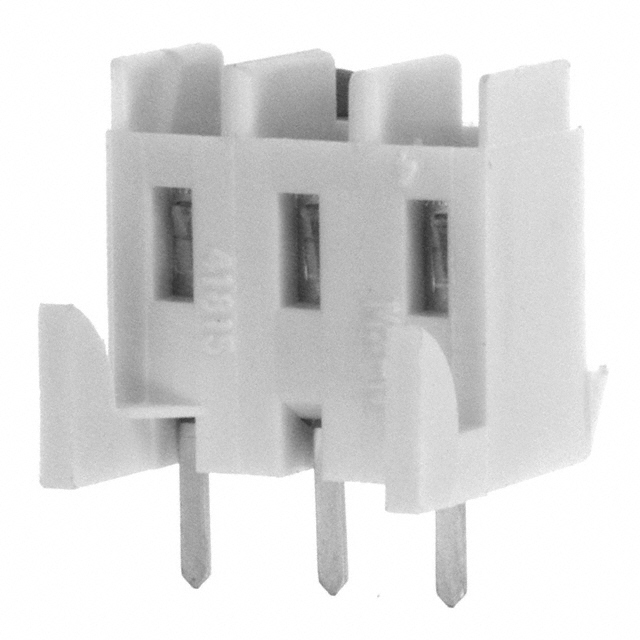

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009483034
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 3POS .156 VERT PCB
Datasheets:	0009483034.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	139773 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 139773 pcs

Reference Price (In US Dollars)

1 pcs: $0.282

10 pcs: $0.263

100 pcs: $0.202

500 pcs: $0.175

2079 pcs: $0.14

6237 pcs: $0.127

10395 pcs: $0.118

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009483034

Part Number	0009483034	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 3POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	139773 pcs	Data sheet	0009483034.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-3034 0009-48-3034-E 0009483034-E 09-48-3034 09-48-3034-E 09483034 09483034-E 9483034 A-41815-0440 WM13520
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.449" (11.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	3 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold	Current Rating	4A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle, Bottom Entry	Applications	Automotive, General Purpose, Medical, Telecommunications
