0009481104

Affinity Medical Technologies - a Molex company

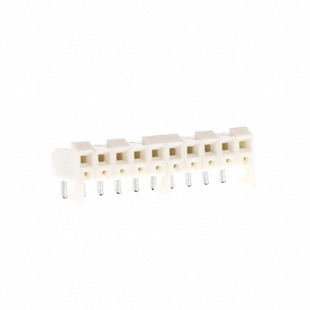

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009481104
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 10POS .156 R/A PCB
Datasheets:	0009481104.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39470 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 39470 pcs

Reference Price (In US Dollars)

1 pcs: $0.968

10 pcs: $0.928

100 pcs: $0.773

500 pcs: $0.657

1000 pcs: $0.56

5000 pcs: $0.502

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.968

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009481104

Part Number	0009481104	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 10POS .156 R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39470 pcs	Data sheet	0009481104.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-1104 0009-48-1104-E 0009481104-E 09-48-1104 09-48-1104-E 09481104 09481104-E 9481104 A-41815-0010 WM13307
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.308" (7.82mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	10 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.145" (3.68mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
