0009481044

Affinity Medical Technologies - a Molex company

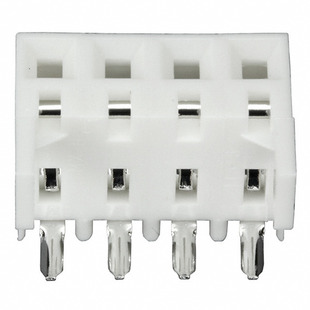

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009481044
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 4POS .156 R/A PCB
Datasheets:	0009481044.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	87071 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 87071 pcs

Reference Price (In US Dollars)

1 pcs: $0.43

10 pcs: $0.378

100 pcs: $0.326

500 pcs: $0.267

1000 pcs: $0.237

5000 pcs: $0.207

10000 pcs: $0.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.43

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009481044

Part Number	0009481044	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 4POS .156 R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87071 pcs	Data sheet	0009481044.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-1044 0009-48-1044-E 0009481044-E 09-48-1044 09-48-1044-E 09481044 09481044-E 9481044 A-41815-0004 WM13301
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.308" (7.82mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Hooks	Fastening Type	Locking Ramp
Detailed Description	4 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.145" (3.68mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	Automotive, General Purpose, Medical, Telecommunications
