0009185098

Affinity Medical Technologies - a Molex company

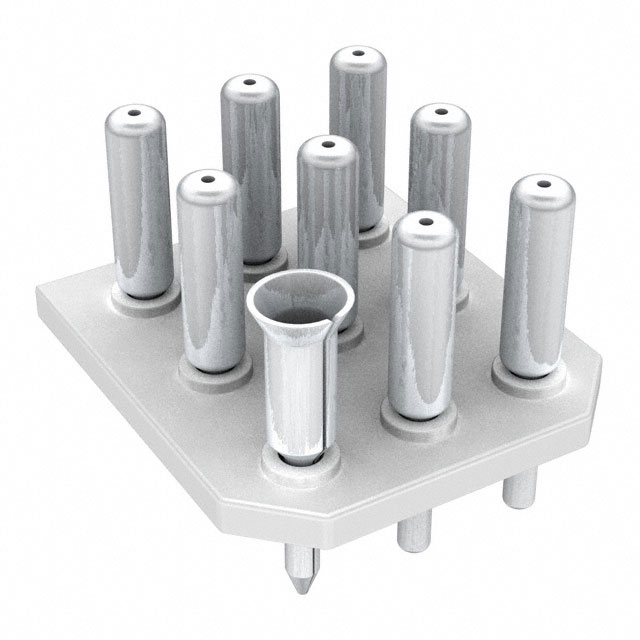

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009185098
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	093 WAFERCON PCB CONN MIXTERM
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5435 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5435 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009185098

Part Number	0009185098	Manufacturer	Affinity Medical Technologies - a Molex company
Description	093 WAFERCON PCB CONN MIXTERM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5435 pcs	Data sheet
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	1840	Row Spacing - Mating	0.198" (5.03mm)
Pitch - Mating	0.198" (5.03mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0009-18-5098 000918-5098 09-18-5098 0918-5098 1840-09-05 9185098
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.093" (2.38mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 9 position 0.198" (5.03mm)
Current Rating	-	Contact Type	Female Socket; Male Pin
Contact Shape	Circular	Contact Material	-
Contact Length - Post	0.172" (4.37mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Telecommunications
