ATS-PCB1060

Advanced Thermal Solutions, Inc.

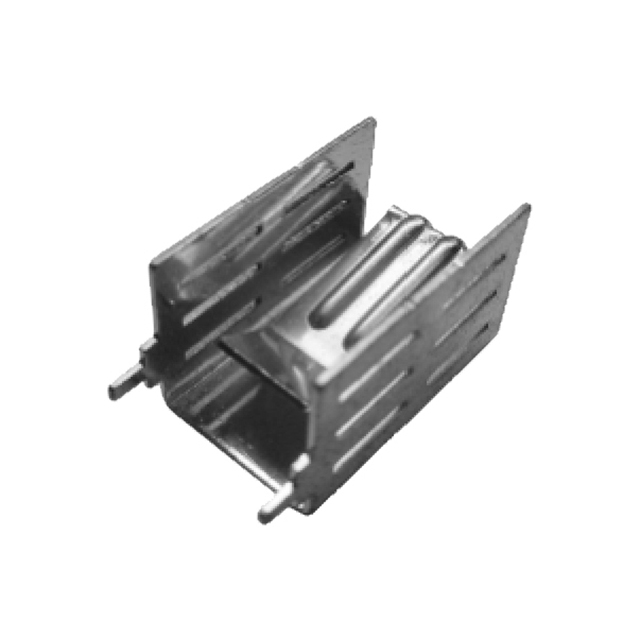

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATS-PCB1060
Manufacturer/Brand:	Advanced Thermal Solutions, Inc.
Product description	HEATSINK TO-220 COPPER W/TAB
Datasheets:	ATS-PCB1060.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	76052 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 76052 pcs

Reference Price (In US Dollars)

1 pcs: $0.495

10 pcs: $0.471

25 pcs: $0.459

50 pcs: $0.447

100 pcs: $0.422

250 pcs: $0.397

500 pcs: $0.372

1000 pcs: $0.347

5000 pcs: $0.335

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.495

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATS-PCB1060

Part Number	ATS-PCB1060	Manufacturer	Advanced Thermal Solutions, Inc.
Description	HEATSINK TO-220 COPPER W/TAB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76052 pcs	Data sheet	ATS-PCB1060.pdf
Width	0.520" (13.21mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	19.70°C/W	Thermal Resistance @ Forced Air Flow	8.00°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-220
Other Names	ATS2102	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Tin	Material	Copper
Manufacturer Standard Lead Time	6 Weeks	Length	0.858" (21.80mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.510" (12.95mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Copper Board Level, Vertical
Attachment Method	Clip and Board Mounts
