ATS-PCB1009

Advanced Thermal Solutions, Inc.

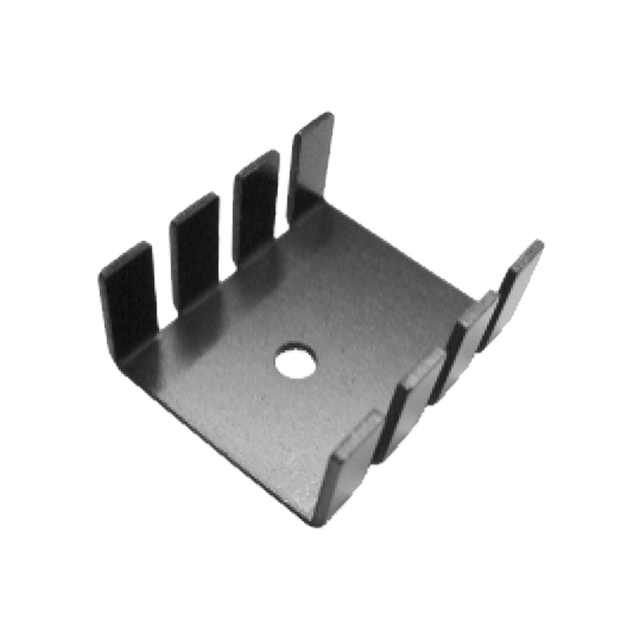

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ATS-PCB1009
Manufacturer/Brand:	Advanced Thermal Solutions, Inc.
Product description	HEATSINK TO-220 LOW PROFILE
Datasheets:	ATS-PCB1009.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	235988 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 235988 pcs

Reference Price (In US Dollars)

1 pcs: $0.144

10 pcs: $0.139

25 pcs: $0.132

50 pcs: $0.128

100 pcs: $0.127

250 pcs: $0.118

500 pcs: $0.111

1000 pcs: $0.101

5000 pcs: $0.097

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.144

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ATS-PCB1009

Part Number	ATS-PCB1009	Manufacturer	Advanced Thermal Solutions, Inc.
Description	HEATSINK TO-220 LOW PROFILE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	235988 pcs	Data sheet	ATS-PCB1009.pdf
Width	0.750" (19.05mm)	Type	Board Level
Thermal Resistance @ Natural	24.00°C/W	Thermal Resistance @ Forced Air Flow	10.00°C/W @ 200 LFM
Shape	Square, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-220
Other Names	ATS2051	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	6 Weeks	Length	0.750" (19.05mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.375" (9.52mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Aluminum Board Level
Attachment Method	Bolt On
