324

Adafruit

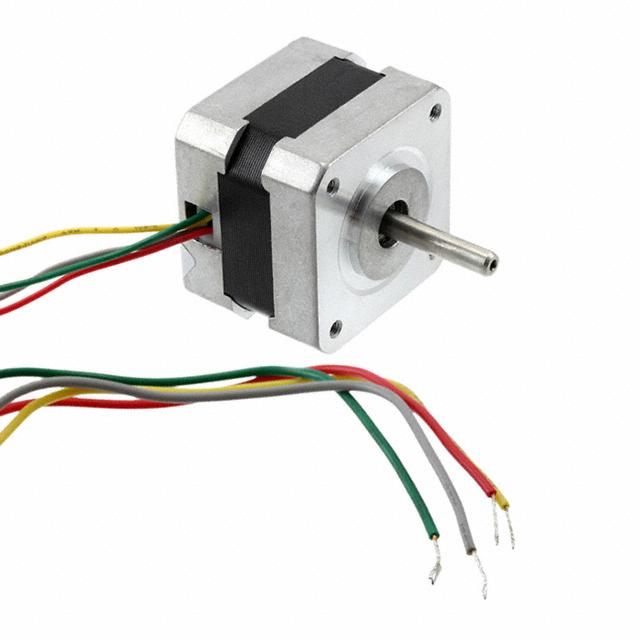

Image may be representation. See specifications for product details.

Product Overview

Part Number:	324
Manufacturer/Brand:	Adafruit
Product description	STEPPER MOTOR HYBRID BIPOLAR 12V
Datasheets:	1.324.pdf 2.324.pdf 3.324.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6519 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6519 pcs

Reference Price (In US Dollars)

1 pcs: $5.057

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 324

Part Number	324	Manufacturer	Adafruit
Description	STEPPER MOTOR HYBRID BIPOLAR 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6519 pcs	Data sheet	1.324.pdf 2.324.pdf 3.324.pdf
Weight	0.441 lb (200.03g)	Voltage - Rated	12VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	28 / 197
Termination Style	Wire Leads	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Series	-	Rotor Inertia	38gcm²
Other Names	1528-1062	Operating Temperature	0°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (30.99mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor 200 Step 0.35A 12VDC	Current Rating	350mA
Coil Type	Bipolar	Coil Resistance	35 Ohms
Approvals	UL	Accuracy	-
