Adafruit
| Part Number | 1143 | Manufacturer | Adafruit |
|---|---|---|---|

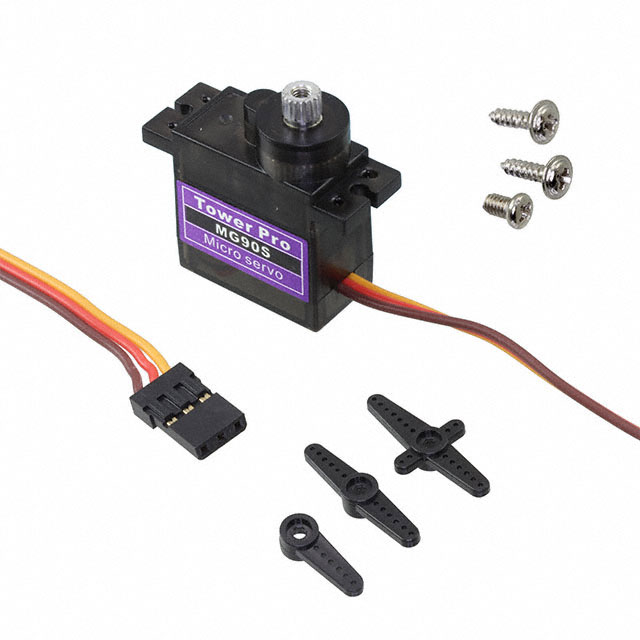

| Description | SERVOMOTOR 5VDC HIGH TORQUE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9693 pcs | Data sheet | 1143.pdf |
| Weight | 0.03 lb (13.61g) | Voltage - Rated | 5VDC |
| Type | DC Motor | Torque - Rated (oz-in / mNm) | 30.5 / 215.38 |
| Torque - Max Momentary (oz-in / mNm) | - | Termination Style | Wire Leads with Connector |
| Size / Dimension | Rectangular - 0.900" x 0.480" (22.80mm x 12.20mm) | Series | - |
| RPM | - | Power - Rated | - |
| Other Names | 1428-1084 1428-1084-ND 1528-1084 TOWERPRO MG90S |
Operating Temperature | - |
| Mounting Hole Spacing | - | Motor Type | Positional Rotation |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gear Reduction Ratio | - | Function | Servomotor, RC (Hobby) |
| Features | - | Encoder Type | - |
| Diameter - Shaft | - | Detailed Description | Positional Rotation DC Motor Servomotor, RC (Hobby) 5VDC |
| Approvals | - |
