ALFT-04-9

Abracon Corporation

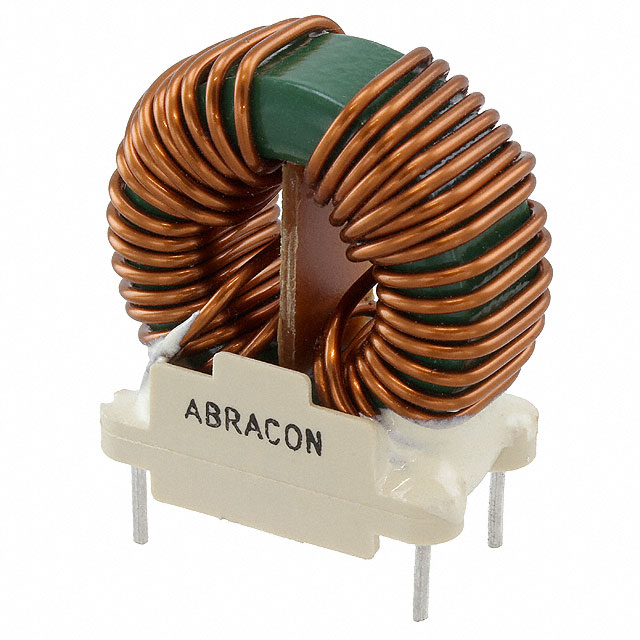

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ALFT-04-9
Manufacturer/Brand:	Abracon Corporation
Product description	COMMON MODE CHOKE 10MH 3A 2LN TH
Datasheets:	1.ALFT-04-9.pdf 2.ALFT-04-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16334 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16334 pcs

Reference Price (In US Dollars)

1 pcs: $2.135

10 pcs: $1.942

100 pcs: $1.32

500 pcs: $1.204

1000 pcs: $1.126

2500 pcs: $1.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.135

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ALFT-04-9

Part Number	ALFT-04-9	Manufacturer	Abracon Corporation
Description	COMMON MODE CHOKE 10MH 3A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16334 pcs	Data sheet	1.ALFT-04-9.pdf 2.ALFT-04-9.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.339" L x 0.709" W (34.00mm x 18.00mm)	Series	ALFT-04
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	535-12487 ALFT-04-9-ND
Operating Temperature	-25°C ~ 85°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	10mH @ 1kHz	Height (Max)	1.614" (41.00mm)
Filter Type	Signal Line	Features	-
Detailed Description	10mH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 40 mOhm	DC Resistance (DCR) (Max)	40 mOhm
Current Rating (Max)	3A	Approvals	-
