ACAJ-109-T

Abracon Corporation

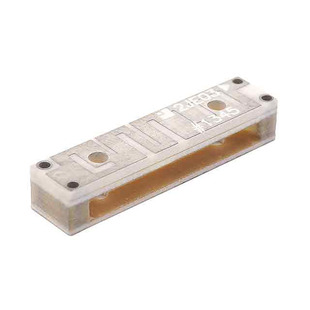

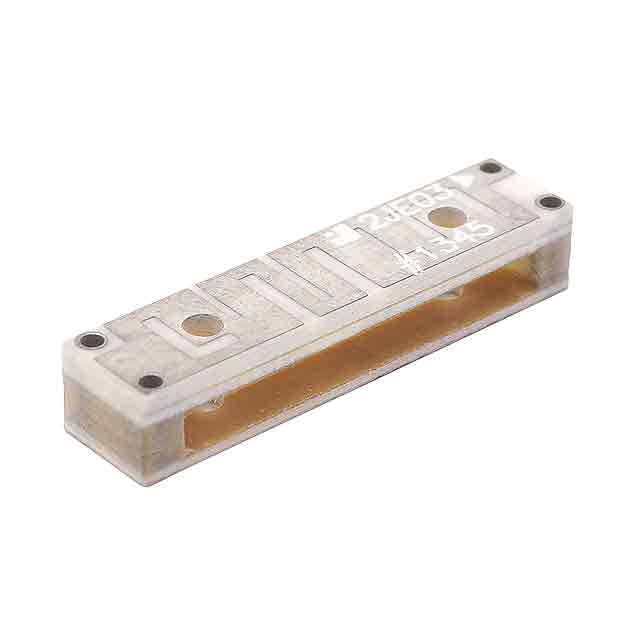

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACAJ-109-T
Manufacturer/Brand:	Abracon Corporation
Product description	RF ANT 850MHZ/900MHZ CHIP SLD
Datasheets:	ACAJ-109-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10059 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10059 pcs

Reference Price (In US Dollars)

1 pcs: $3.255

10 pcs: $2.93

25 pcs: $2.67

100 pcs: $2.409

250 pcs: $2.214

500 pcs: $2.019

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.255

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACAJ-109-T

Part Number	ACAJ-109-T	Manufacturer	Abracon Corporation
Description	RF ANT 850MHZ/900MHZ CHIP SLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10059 pcs	Data sheet	ACAJ-109-T.pdf
VSWR	3.5, 3	Termination	Solder
Series	-	Return Loss	-
Packaging	Cut Tape (CT)	Other Names	535-13312-1
Number of Bands	5	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.173" (4.40mm)	Gain	6.4dBi
Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Frequency Group	Wide Band
Frequency (Center/Band)	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	Features	-
Detailed Description	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM, UMTS Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 6.4dBi Solder Surface Mount	Applications	GSM, UMTS
Antenna Type	Chip
