7106DG

Aavid Thermalloy

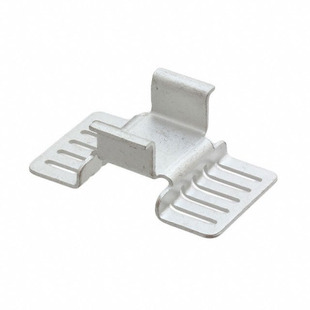

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7106DG
Manufacturer/Brand:	Aavid Thermalloy
Product description	BOARD LEVEL HEATSINK .375" D2PAK
Datasheets:	1.7106DG.pdf 2.7106DG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66415 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 66415 pcs

Reference Price (In US Dollars)

1 pcs: $0.513

10 pcs: $0.489

25 pcs: $0.476

50 pcs: $0.463

100 pcs: $0.437

250 pcs: $0.412

500 pcs: $0.386

1000 pcs: $0.36

5000 pcs: $0.347

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.513

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7106DG

Part Number	7106DG	Manufacturer	Aavid Thermalloy
Description	BOARD LEVEL HEATSINK .375" D2PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66415 pcs	Data sheet	1.7106DG.pdf 2.7106DG.pdf
Width	1.020" (25.91mm)	Type	Top Mount
Thermal Resistance @ Natural	-	Thermal Resistance @ Forced Air Flow	5.00°C/W @ 400 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	2.0W @ 40°C	Package Cooled	TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10
Other Names	042187 7106DG-ND HS412	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Tin	Material	Copper
Manufacturer Standard Lead Time	7 Weeks	Length	0.590" (15.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.375" (9.52mm)
Diameter	-	Detailed Description	Heat Sink TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10 Copper 2.0W @ 40°C Top Mount
Attachment Method	SMD Pad
