6396BG

Aavid Thermalloy

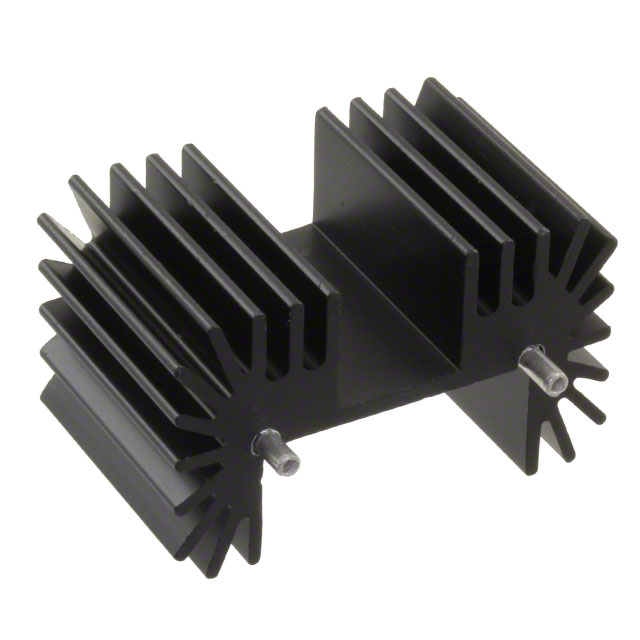

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6396BG
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-218/TO-220 PIN
Datasheets:	1.6396BG.pdf 2.6396BG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60234 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60234 pcs

Reference Price (In US Dollars)

1 pcs: $0.571

10 pcs: $0.543

25 pcs: $0.529

50 pcs: $0.514

100 pcs: $0.486

250 pcs: $0.457

500 pcs: $0.429

1000 pcs: $0.40

5000 pcs: $0.386

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.571

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6396BG

Part Number	6396BG	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-218/TO-220 PIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60234 pcs	Data sheet	1.6396BG.pdf 2.6396BG.pdf
Width	1.650" (41.91mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	5.60°C/W	Thermal Resistance @ Forced Air Flow	1.50°C/W @ 600 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	4.0W @ 30°C	Package Cooled	TO-220, TO-218
Other Names	041507	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	7 Weeks	Length	1.000" (25.40mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	1.000" (25.40mm)
Diameter	-	Detailed Description	Heat Sink TO-220, TO-218 Aluminum 4.0W @ 30°C Board Level, Vertical
Attachment Method	Bolt On and PC Pin
