563002D00000G

Aavid Thermalloy

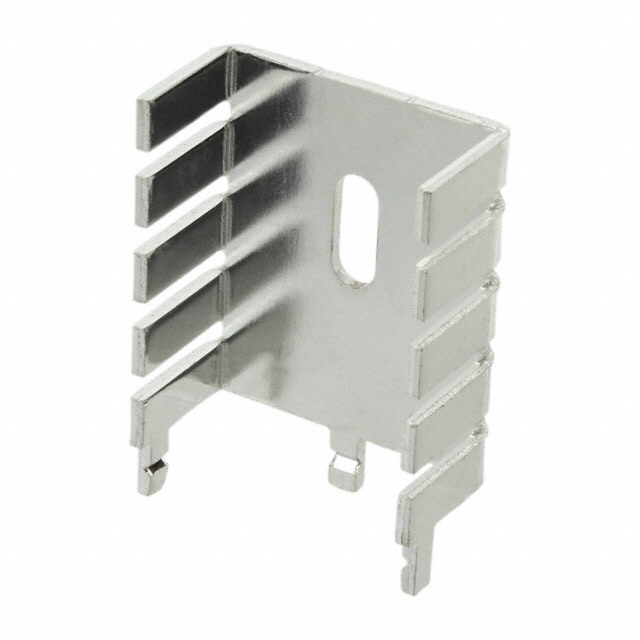

Image may be representation. See specifications for product details.

Product Overview

Part Number:	563002D00000G
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-220 TAB TIN
Datasheets:	1.563002D00000G.pdf 2.563002D00000G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36162 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36162 pcs

Reference Price (In US Dollars)

1 pcs: $0.95

10 pcs: $0.925

25 pcs: $0.90

50 pcs: $0.85

100 pcs: $0.80

250 pcs: $0.75

500 pcs: $0.725

1000 pcs: $0.65

5000 pcs: $0.637

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.95

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 563002D00000G

Part Number	563002D00000G	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-220 TAB TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36162 pcs	Data sheet	1.563002D00000G.pdf 2.563002D00000G.pdf
Width	1.000" (25.40mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	13.00°C/W	Thermal Resistance @ Forced Air Flow	4.00°C/W @ 600 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	1.0W @ 20°C	Package Cooled	TO-220
Other Names	041743	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Tin	Material	-
Manufacturer Standard Lead Time	7 Weeks	Length	1.180" (29.97mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.500" (12.70mm)
Diameter	-	Detailed Description	Heat Sink TO-220 1.0W @ 20°C Board Level, Vertical
Attachment Method	Bolt On and PC Pin
