534302B03553G

Aavid Thermalloy

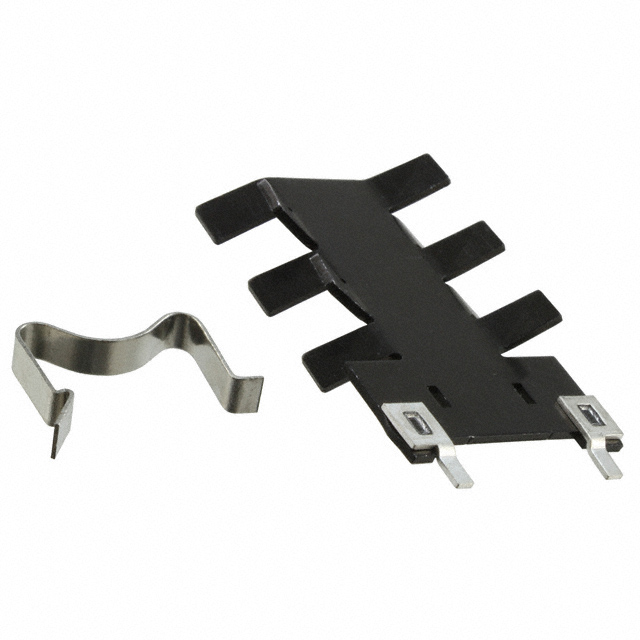

Image may be representation. See specifications for product details.

Product Overview

Part Number:	534302B03553G
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-220 W/TAB-KOOLCLIP
Datasheets:	534302B03553G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62964 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62964 pcs

Reference Price (In US Dollars)

1 pcs: $0.614

10 pcs: $0.583

25 pcs: $0.568

50 pcs: $0.553

100 pcs: $0.522

250 pcs: $0.491

500 pcs: $0.461

1000 pcs: $0.43

5000 pcs: $0.415

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.614

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 534302B03553G

Part Number	534302B03553G	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-220 W/TAB-KOOLCLIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62964 pcs	Data sheet	534302B03553G.pdf
Width	1.380" (35.05mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	10.40°C/W	Thermal Resistance @ Forced Air Flow	5.00°C/W @ 200 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	6.0W @ 60°C	Package Cooled	TO-220
Other Names	044318 HS420	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Length	2.000" (50.80mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.480" (12.19mm)	Diameter	-
Detailed Description	Heat Sink TO-220 Aluminum 6.0W @ 60°C Board Level, Vertical	Attachment Method	Clip and PC Pin
