533402B02552G

Aavid Thermalloy

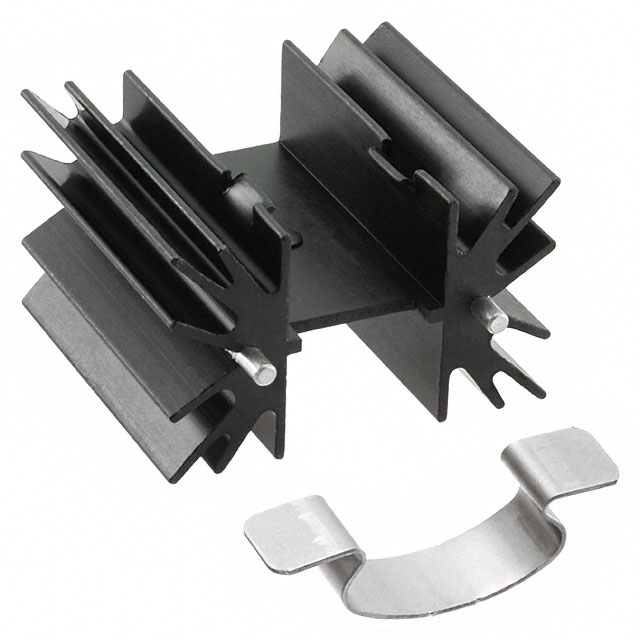

Image may be representation. See specifications for product details.

Product Overview

Part Number:	533402B02552G
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-220 SOLDERPIN/CLIP
Datasheets:	1.533402B02552G.pdf 2.533402B02552G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34315 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34315 pcs

Reference Price (In US Dollars)

1 pcs: $0.878

10 pcs: $0.854

25 pcs: $0.831

50 pcs: $0.785

100 pcs: $0.739

250 pcs: $0.692

500 pcs: $0.669

1000 pcs: $0.60

5000 pcs: $0.589

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.878

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 533402B02552G

Part Number	533402B02552G	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-220 SOLDERPIN/CLIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34315 pcs	Data sheet	1.533402B02552G.pdf 2.533402B02552G.pdf
Width	1.650" (41.91mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	5.00°C/W	Thermal Resistance @ Forced Air Flow	2.00°C/W @ 500 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	8.0W @ 40°C	Package Cooled	TO-220
Other Names	001854 042116 533402B02552 533402B02552-ND	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	7 Weeks	Length	1.500" (38.10mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	1.000" (25.40mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Aluminum 8.0W @ 40°C Board Level, Vertical
Attachment Method	Clip and PC Pin
