AVX Corporation
| Part Number | 046288010000846+ | Manufacturer | AVX Corporation |
|---|---|---|---|

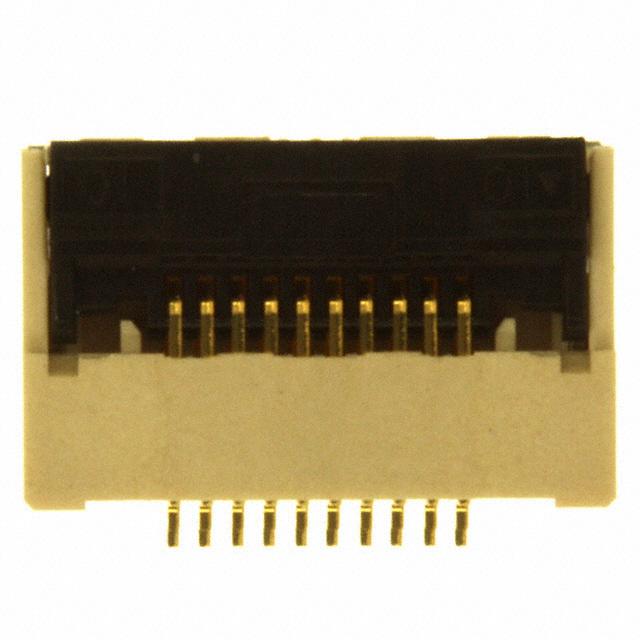

| Description | CONN FFC BOTTOM 10POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62119 pcs | Data sheet | 046288010000846+.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | 6288, Kyocera | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 478-5455-1 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 16 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Plastic |
| Housing Color | - | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.4A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | - | Actuator Color | - |
