AVX Corporation
| Part Number | 008383010000010 | Manufacturer | AVX Corporation |
|---|---|---|---|

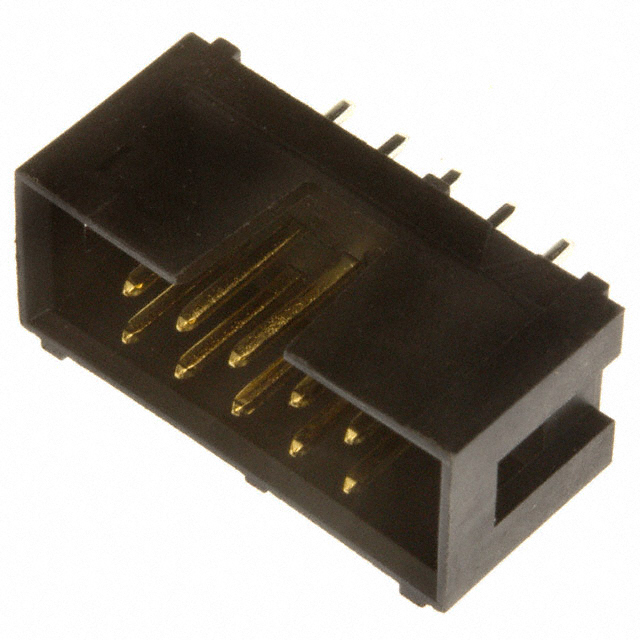

| Description | CONN HEADER HI TEMP 10POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31734 pcs | Data sheet | 008383010000010.pdf |
| Voltage Rating | 350V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 8383 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 478-4878 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.376" (9.55mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.242" (6.15mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
