AVX Corporation

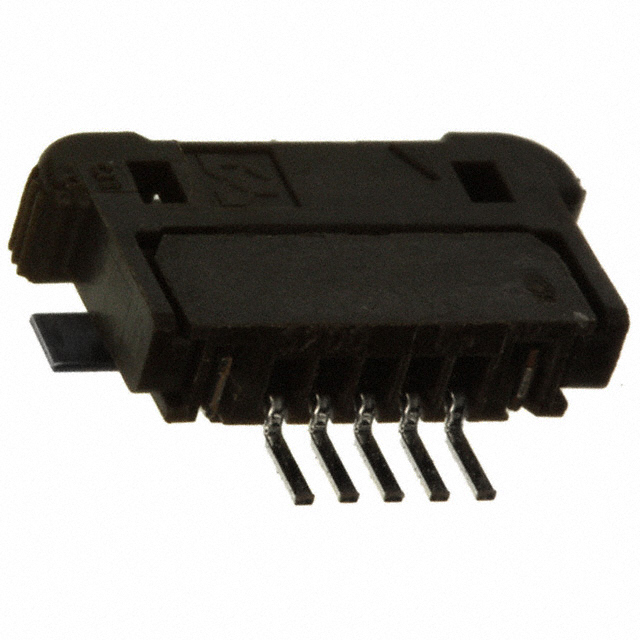

| Part Number | 006200505130000+ | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN FFC BOTTOM 5POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 195857 pcs | Data sheet | 006200505130000+.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | 6200, Kyocera | Pitch | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | - |
| Height Above Board | 0.114" (2.90mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
