V5224C

ASSMANN WSW Components

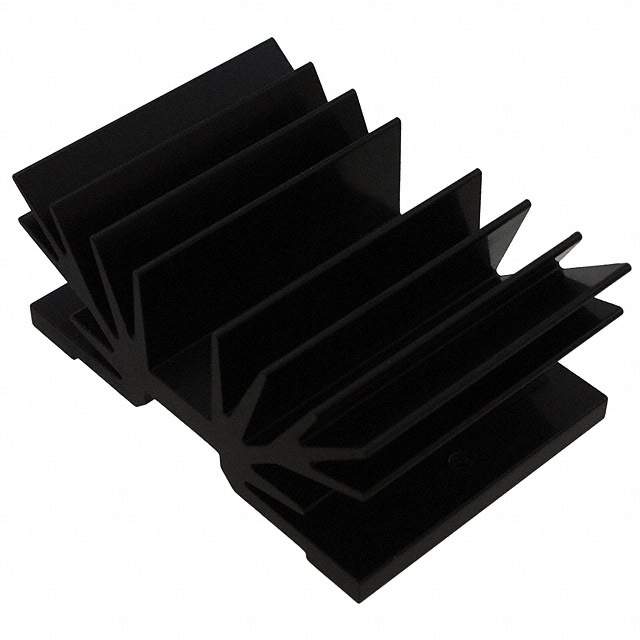

Image may be representation. See specifications for product details.

Product Overview

Part Number:	V5224C
Manufacturer/Brand:	ASSMANN WSW Components
Product description	HEATSINK ALUM ANOD
Datasheets:	V5224C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34969 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34969 pcs

Reference Price (In US Dollars)

1 pcs: $1.113

10 pcs: $1.085

25 pcs: $1.055

50 pcs: $0.997

100 pcs: $0.938

250 pcs: $0.879

500 pcs: $0.85

1000 pcs: $0.762

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.113

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of V5224C

Part Number	V5224C	Manufacturer	ASSMANN WSW Components
Description	HEATSINK ALUM ANOD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34969 pcs	Data sheet	V5224C.pdf
Width	2.126" (54.00mm)	Type	Board Level
Thermal Resistance @ Natural	-	Thermal Resistance @ Forced Air Flow	-
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	SOT-32, TO-220, TOP-3
Other Names	AE10826	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	20 Weeks	Length	1.476" (37.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.886" (22.50mm)
Diameter	-	Detailed Description	Heat Sink SOT-32, TO-220, TOP-3 Aluminum Board Level
Attachment Method	Bolt On
