AWH 14G-0222-T

ASSMANN WSW Components

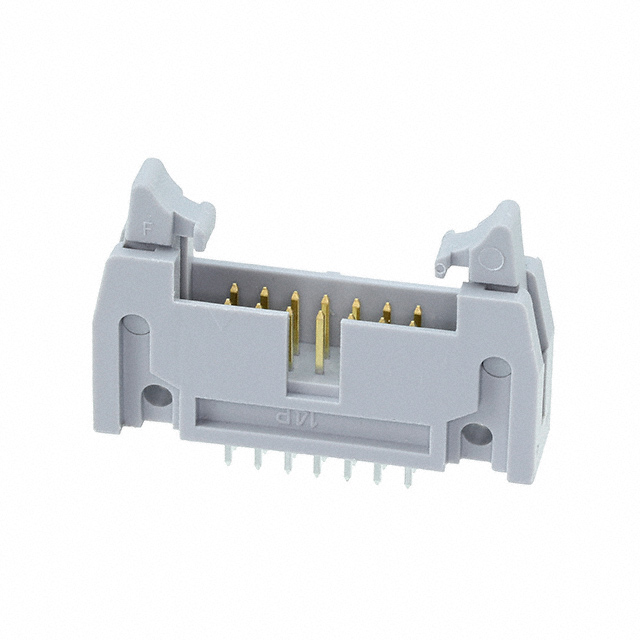

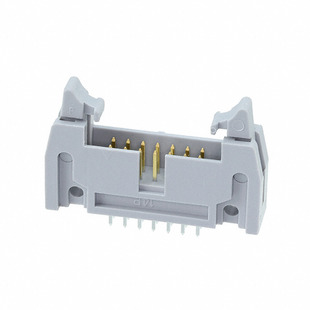

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AWH 14G-0222-T
Manufacturer/Brand:	ASSMANN WSW Components
Product description	CONN HEADER 14PS VERT SHORT GOLD
Datasheets:	AWH 14G-0222-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	71054 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 71054 pcs

Reference Price (In US Dollars)

1 pcs: $0.506

10 pcs: $0.446

132 pcs: $0.385

528 pcs: $0.315

1056 pcs: $0.28

5016 pcs: $0.245

10032 pcs: $0.233

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.506

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AWH 14G-0222-T

Part Number	AWH 14G-0222-T	Manufacturer	ASSMANN WSW Components
Description	CONN HEADER 14PS VERT SHORT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71054 pcs	Data sheet	AWH 14G-0222-T.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	-	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	AE11071 AWH-14G-0222-T AWH-14G-0222-T-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.669" (17.00mm)
Insulation Color	Gray	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Lock/Eject Hooks, Short
Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
