ASSMANN WSW Components

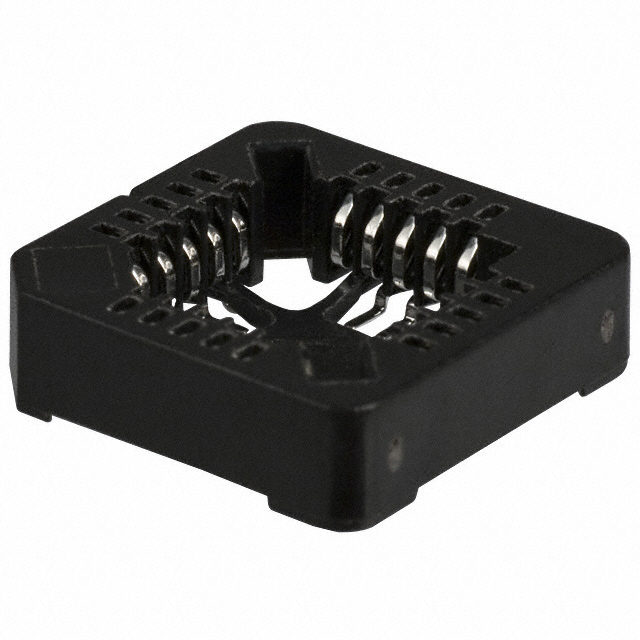

| Part Number | A-CCS20-Z-SM | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3038 pcs | Data sheet | A-CCS20-Z-SM.pdf |
| Type | PLCC | Termination Post Length | 0.130" (3.30mm) |
| Termination | Solder | Series | - |
| Pitch - Post | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | A-CCS-20-Z-SM ACCS20ZSM AE7339 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions or Pins (Grid) | 20 (4 x 5) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
