ASSMANN WSW Components
| Part Number | A-CCS 032-Z-T | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|

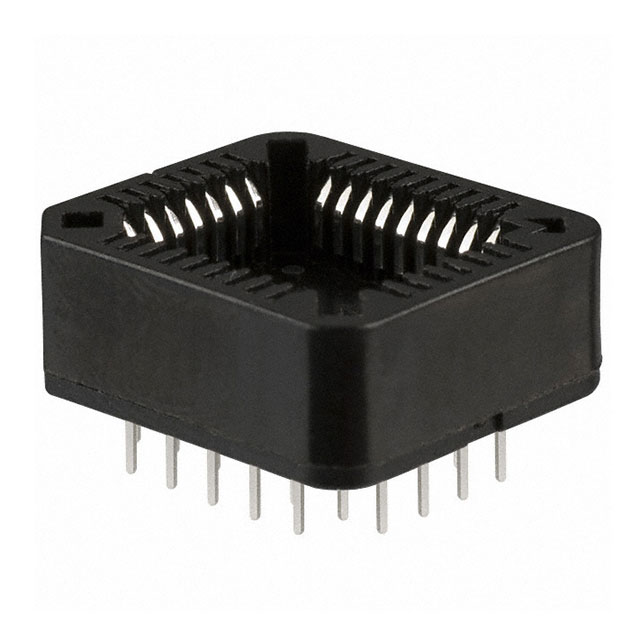

| Description | CONN SOCKET PLCC 32POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102323 pcs | Data sheet | A-CCS 032-Z-T.pdf |
| Type | PLCC | Termination Post Length | 0.132" (3.35mm) |
| Termination | Solder | Series | - |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | A-CCS-032-Z-T A-CCS-032-Z-T-ND AE11106 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 32 (4 x 8) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT) |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 15 mOhm | Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze | Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
