DC630R-272M

API DelevanAPI Delevan

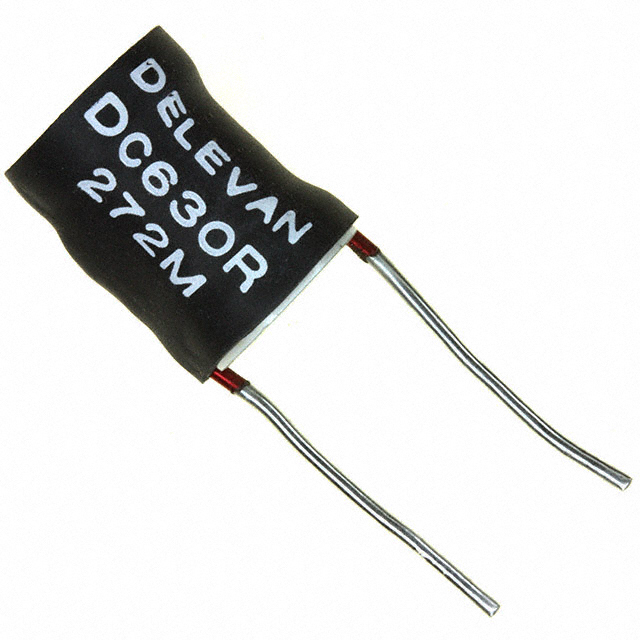

DC630R-272M Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: DC630R-272M
Manufacturer/Brand: API Delevan
Product description FIXED IND 2.7UH 12.8A 5 MOHM TH
Datasheets: DC630R-272M.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 26539 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 26539 pcs
Reference Price (In US Dollars)
500 pcs
$1.151
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.151

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of DC630R-272M

Part Number DC630R-272M Manufacturer API Delevan
Description FIXED IND 2.7UH 12.8A 5 MOHM TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 26539 pcs Data sheet DC630R-272M.pdf
Type Wirewound Tolerance ±20%
Supplier Device Package - Size / Dimension 0.630" Dia (16.00mm)
Shielding Unshielded Series DC630R
Ratings - Q @ Freq -
Packaging Bulk Package / Case Radial
Other Names DC630R-272M BULK 100
DN4771		 Operating Temperature -55°C ~ 125°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core Ferrite Manufacturer Standard Lead Time 14 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Inductance Frequency - Test 10kHz
Inductance 2.7µH Height - Seated (Max) 0.830" (21.08mm)
Frequency - Self Resonant - Detailed Description 2.7µH Unshielded Wirewound Inductor 12.8A 5 mOhm Max Radial
DC Resistance (DCR) 5 mOhm Max Current Rating 12.8A
Current - Saturation 42A
