JD7509F

APEM Inc.

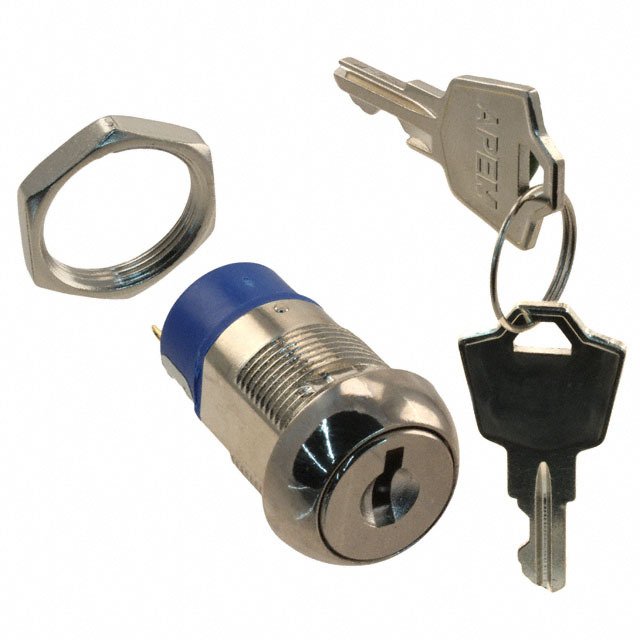

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JD7509F
Manufacturer/Brand:	APEM Inc.
Product description	SWITCH KEYLOCK 3POS DP3T 4A 125V
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3282 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3282 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JD7509F

Part Number	JD7509F	Manufacturer	APEM Inc.
Description	SWITCH KEYLOCK 3POS DP3T 4A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3282 pcs	Data sheet
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On-On	Series	JD
Panel Cutout Dimensions	Circular - 19.00mm Dia	Operating Temperature	-30°C ~ 85°C
Number of Positions	3	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Key Removable Positions	1 and 3
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Keylock Switch 3 Position DP3T 4A (AC) 125VAC Panel Mount	Depth Behind Flange	27.55mm
Current Rating	4A (AC)	Contact Timing	Not Specified
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	DP3T	Angle of Throw	45°
Actuator Type	Flat Key
