SZESD7016MUTAG

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

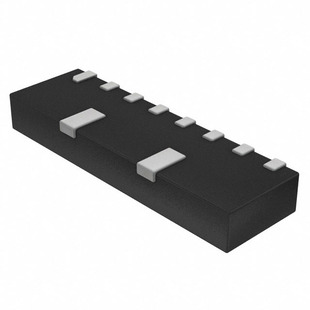

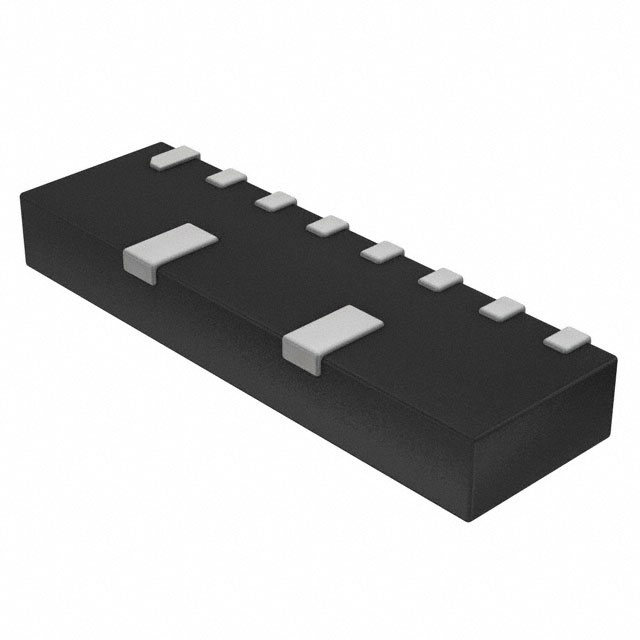

SZESD7016MUTAG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SZESD7016MUTAG
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description TVS DIODE 5VWM 10VC
Datasheets: SZESD7016MUTAG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 162375 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 162375 pcs
Reference Price (In US Dollars)
1 pcs
$0.242
10 pcs
$0.213
100 pcs
$0.163
500 pcs
$0.129
1000 pcs
$0.103
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.242

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SZESD7016MUTAG

Part Number SZESD7016MUTAG Manufacturer AMI Semiconductor / ON Semiconductor
Description TVS DIODE 5VWM 10VC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 162375 pcs Data sheet SZESD7016MUTAG.pdf
Voltage - Reverse Standoff (Typ) 5V (Max) Voltage - Clamping (Max) @ Ipp 10V
Voltage - Breakdown (Min) 5.5V Unidirectional Channels 8
Type Zener Supplier Device Package 8-UDFN (3.3x1.0)
Series Automotive, AEC-Q101 Power Line Protection No
Power - Peak Pulse - Packaging Cut Tape (CT)
Package / Case 8-UFDFN Other Names SZESD7016MUTAGOSCT
Operating Temperature -55°C ~ 125°C (TJ) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 6 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Capacitance @ Frequency 0.15pF @ 1MHz Applications Automotive
