STK541UC60C-E

AMI Semiconductor / ON Semiconductor

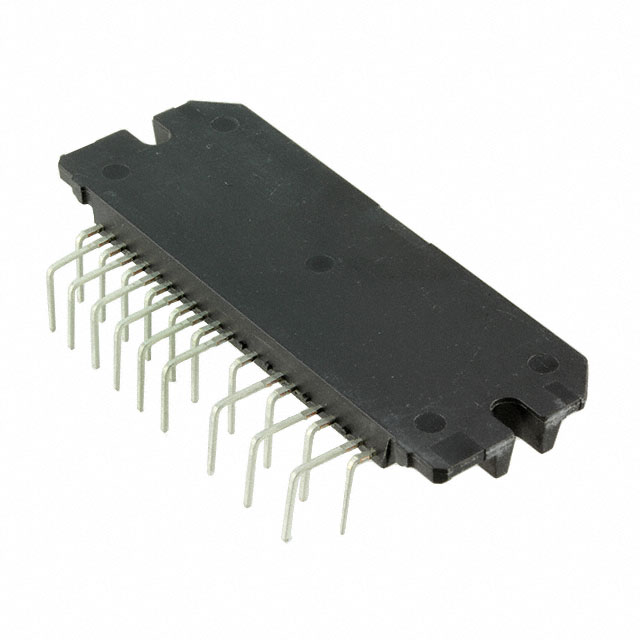

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STK541UC60C-E
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MODULE IPM INVERTER 3PH 23SIP
Datasheets:	STK541UC60C-E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9532 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9532 pcs

Reference Price (In US Dollars)

32 pcs: $4.01

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.01

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STK541UC60C-E

Part Number	STK541UC60C-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MODULE IPM INVERTER 3PH 23SIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9532 pcs	Data sheet	STK541UC60C-E.pdf
Voltage - Supply	12.5 V ~ 17.5 V	Voltage - Load	450V (Max)
Technology	IGBT	Supplier Device Package	23-SIP
Series	-	Rds On (Typ)	-
Packaging	Tube	Package / Case	23-SIP, 19 Leads, Formed Leads
Output Configuration	Half Bridge (3)	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	Status Flag
Fault Protection	Current Limiting, UVLO	Detailed Description	Half Bridge (3) Driver AC Motors IGBT 23-SIP
Current - Peak Output	20A	Current - Output / Channel	10A
Applications	AC Motors
