SBS811-TL-E

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

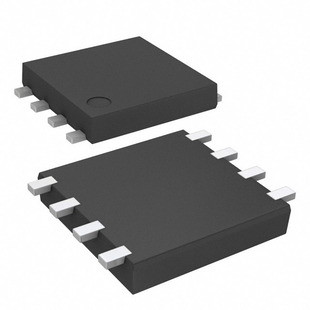

SBS811-TL-E Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SBS811-TL-E
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description DIODE ARRAY SCHOTTKY 30V 2A 8VEC
Datasheets: SBS811-TL-E.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6217 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6217 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SBS811-TL-E

Part Number SBS811-TL-E Manufacturer AMI Semiconductor / ON Semiconductor
Description DIODE ARRAY SCHOTTKY 30V 2A 8VEC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6217 pcs Data sheet SBS811-TL-E.pdf
Voltage - Forward (Vf) (Max) @ If 400mV @ 2A Voltage - DC Reverse (Vr) (Max) 30V
Supplier Device Package 8-VEC Speed Fast Recovery = 200mA (Io)
Series - Reverse Recovery Time (trr) 20ns
Packaging Original-Reel® Package / Case 8-SMD, Flat Lead
Other Names 869-1190-6 Operating Temperature - Junction -55°C ~ 125°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Diode Type Schottky
Diode Configuration 2 Independent Detailed Description Diode Array 2 Independent Schottky 30V 2A Surface Mount 8-SMD, Flat Lead
Current - Reverse Leakage @ Vr 1.25mA @ 15V Current - Average Rectified (Io) (per Diode) 2A
Base Part Number SBS811
