AMI Semiconductor / ON Semiconductor
| Part Number | NVD5490NLT4G-VF01 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 60V 17A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 267955 pcs | Data sheet | NVD5490NLT4G-VF01.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Vgs (Max) | ±20V |

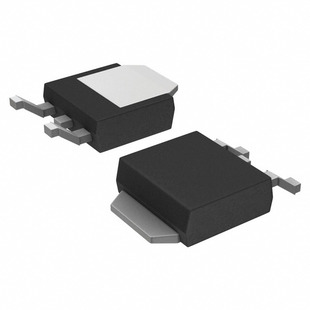

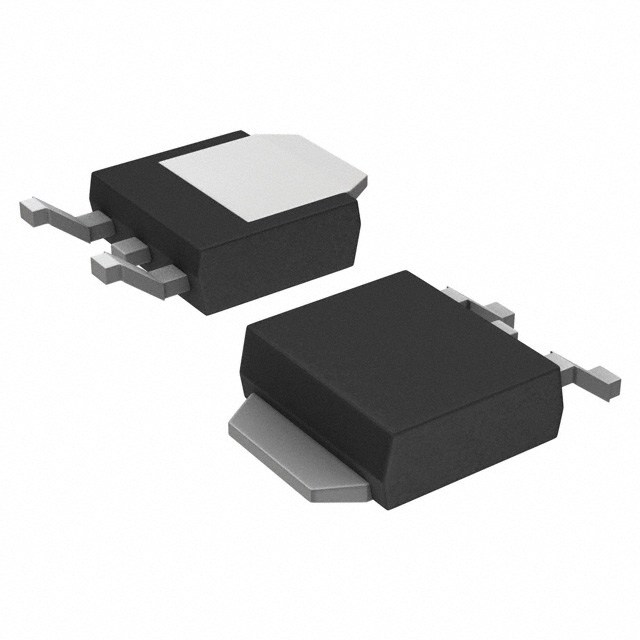

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | DPAK |
| Series | - | Rds On (Max) @ Id, Vgs | 64 mOhm @ 9A, 10V |
| Power Dissipation (Max) | 3.4W (Ta), 49W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | NVD5490NLT4G-ND NVD5490NLT4G-VF01 NVD5490NLT4G-VF01-ND NVD5490NLT4G-VF01OSTR NVD5490NLT4G-VF01OSTR-ND NVD5490NLT4GOSTR |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 365pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 5A (Ta), 17A (Tc) 3.4W (Ta), 49W (Tc) Surface Mount DPAK |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta), 17A (Tc) |
