NUF8001MUT2G

AMI Semiconductor / ON Semiconductor

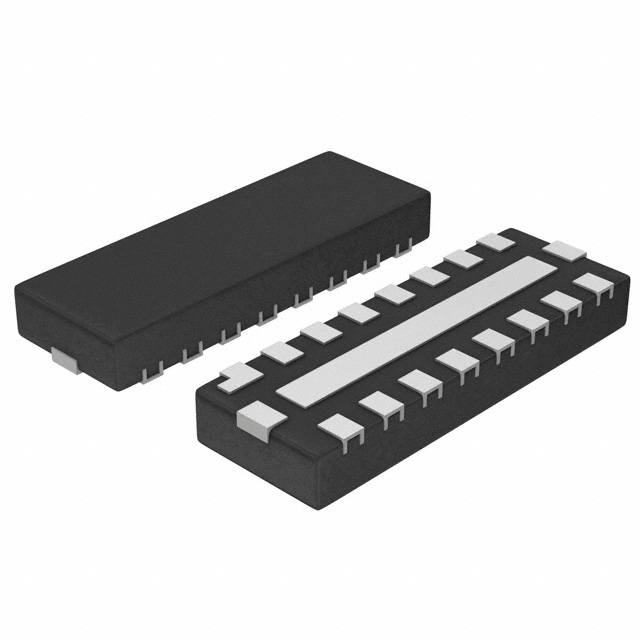

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NUF8001MUT2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	FILTER RC(PI) 100 OHM/12PF SMD
Datasheets:	NUF8001MUT2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	304719 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 304719 pcs

Reference Price (In US Dollars)

3000 pcs: $0.116

6000 pcs: $0.108

15000 pcs: $0.101

30000 pcs: $0.096

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.116

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NUF8001MUT2G

Part Number	NUF8001MUT2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	FILTER RC(PI) 100 OHM/12PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	304719 pcs	Data sheet	NUF8001MUT2G.pdf
Voltage - Rated	-	Values	R = 100 Ohms, C = 12pF
Type	Low Pass	Technology	RC (Pi)
Size / Dimension	0.138" L x 0.047" W (3.50mm x 1.20mm)	Series	-
Resistance - Channel (Ohms)	100	Packaging	Tape & Reel (TR)
Package / Case	16-UFDFN Exposed Pad	Other Names	NUF8001MUT2G-ND NUF8001MUT2GOSTR
Operating Temperature	-40°C ~ 85°C	Number of Channels	8
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.022" (0.55mm)	Filter Order	2nd
ESD Protection	Yes	Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 12pF 16-UFDFN Exposed Pad
Center / Cutoff Frequency	160MHz (Cutoff)	Attenuation Value	-25dB @ 800MHz ~ 5GHz
Applications	Data Lines for Mobile Devices
