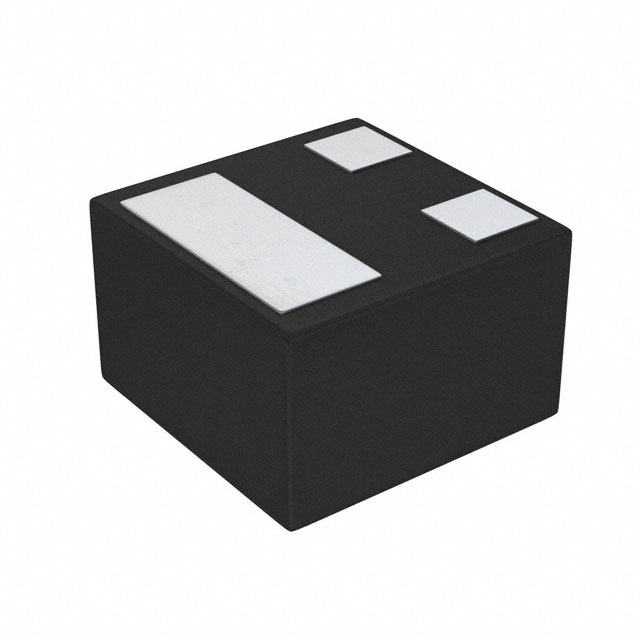

AMI Semiconductor / ON Semiconductor
| Part Number | NTNS3193NZT5G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 20V 224MA XLLGA3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124215 pcs | Data sheet | NTNS3193NZT5G.pdf |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 3-XLLGA (0.62x0.62) |
| Series | - | Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 100mA, 4.5V |
| Power Dissipation (Max) | 120mW (Ta) | Packaging | Cut Tape (CT) |
| Package / Case | 3-XFLGA | Other Names | NTNS3193NZT5GOSCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 15.8pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 0.7nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 224mA (Ta) 120mW (Ta) Surface Mount 3-XLLGA (0.62x0.62) |
| Current - Continuous Drain (Id) @ 25°C | 224mA (Ta) |
