NTHS5443T1

AMI Semiconductor / ON Semiconductor

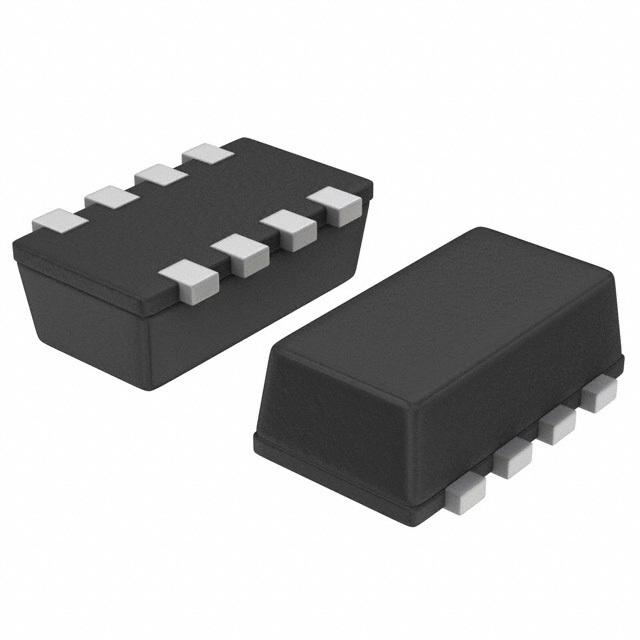

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NTHS5443T1
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET P-CH 20V 3.6A CHIPFET
Datasheets:	NTHS5443T1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	7014 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7014 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NTHS5443T1

Part Number	NTHS5443T1	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET P-CH 20V 3.6A CHIPFET	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	7014 pcs	Data sheet	NTHS5443T1.pdf
Vgs(th) (Max) @ Id	600mV @ 250µA	Vgs (Max)	±12V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	ChipFET™
Series	-	Rds On (Max) @ Id, Vgs	65 mOhm @ 3.6A, 4.5V
Power Dissipation (Max)	1.3W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	8-SMD, Flat Lead	Other Names	NTHS5443T1OS
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V	FET Type	P-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Drain to Source Voltage (Vdss)	20V	Detailed Description	P-Channel 20V 3.6A (Ta) 1.3W (Ta) Surface Mount ChipFET™
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
