NLAS4685FCT1G

AMI Semiconductor / ON Semiconductor

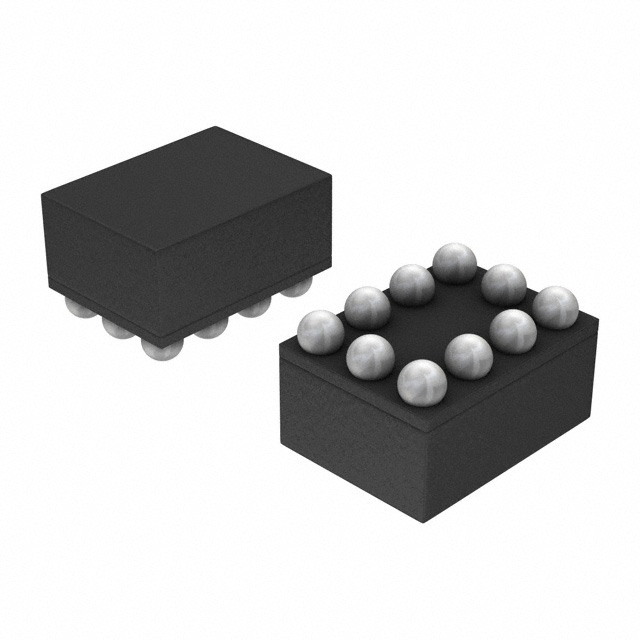

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NLAS4685FCT1G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SWITCH DUAL SPDT 10MICROBUMP
Datasheets:	NLAS4685FCT1G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3440 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3440 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NLAS4685FCT1G

Part Number	NLAS4685FCT1G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SWITCH DUAL SPDT 10MICROBUMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3440 pcs	Data sheet	NLAS4685FCT1G.pdf
Voltage - Supply, Single (V+)	1.8 V ~ 5.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 25ns	Switch Circuit	SPDT
Supplier Device Package	10-Microbump (1.97x1.47)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	10-UFBGA, FCBGA
Operating Temperature	-55°C ~ 125°C (TA)	On-State Resistance (Max)	800 mOhm
Number of Circuits	2	Multiplexer/Demultiplexer Circuit	2:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2 Circuit IC Switch 2:1 800 mOhm 10-Microbump (1.97x1.47)	Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-81dB @ 100kHz	Charge Injection	20pC
Channel-to-Channel Matching (ΔRon)	60 mOhm	Channel Capacitance (CS(off), CD(off))	208pF, 102pF
Base Part Number	NLAS4685	-3db Bandwidth	11.5MHz
