NLAS3799BLMNR2G

AMI Semiconductor / ON Semiconductor

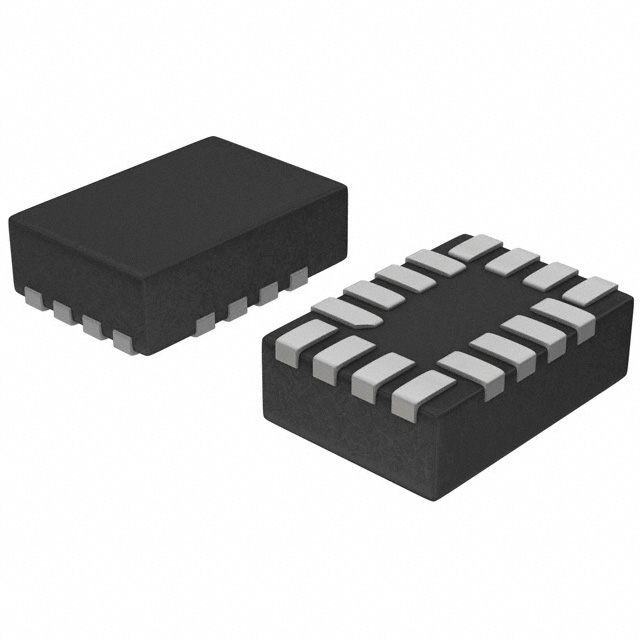

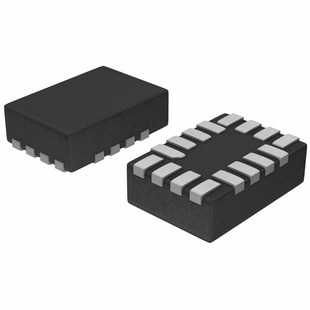

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NLAS3799BLMNR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SWITCH DUAL DPDT 16WQFN
Datasheets:	NLAS3799BLMNR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4267 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4267 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NLAS3799BLMNR2G

Part Number	NLAS3799BLMNR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SWITCH DUAL DPDT 16WQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4267 pcs	Data sheet	NLAS3799BLMNR2G.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 4.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 30ns	Switch Circuit	DPDT
Supplier Device Package	16-WQFN (1.8x2.6)	Series	-
Packaging	Cut Tape (CT)	Package / Case	16-WFQFN
Other Names	NLAS3799BLMNR2GOSCT	Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	400 mOhm	Number of Circuits	2
Multiplexer/Demultiplexer Circuit	2:2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	2 Circuit IC Switch 2:2 400 mOhm 16-WQFN (1.8x2.6)
Current - Leakage (IS(off)) (Max)	500nA	Crosstalk	-90dB @ 100kHz
Charge Injection	51pC	Channel-to-Channel Matching (ΔRon)	50 mOhm (Max)
Channel Capacitance (CS(off), CD(off))	3pF	Base Part Number	NLAS3799B
-3db Bandwidth	19MHz
