NLAS3158MNR2G

AMI Semiconductor / ON Semiconductor

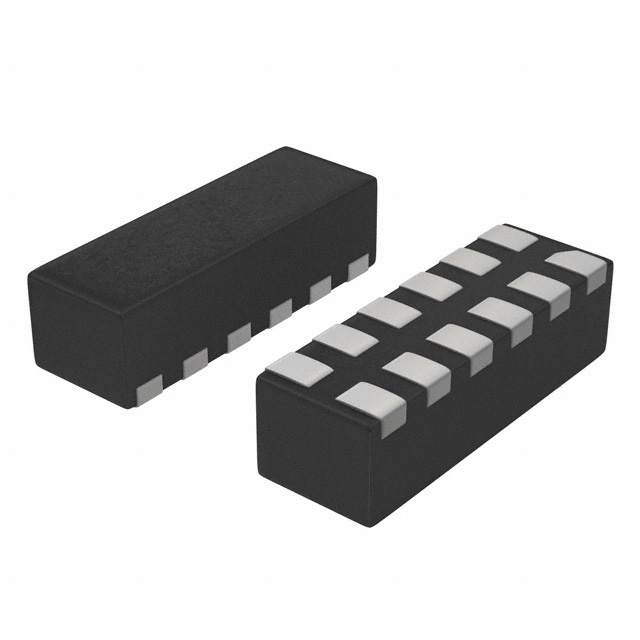

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NLAS3158MNR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SWITCH DUAL SPDT 12DFN
Datasheets:	NLAS3158MNR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	151843 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 151843 pcs

Reference Price (In US Dollars)

1 pcs: $0.217

10 pcs: $0.191

100 pcs: $0.146

500 pcs: $0.116

1000 pcs: $0.092

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.217

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NLAS3158MNR2G

Part Number	NLAS3158MNR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SWITCH DUAL SPDT 12DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	151843 pcs	Data sheet	NLAS3158MNR2G.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 5.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.2ns, 3.5ns	Switch Circuit	SPDT
Supplier Device Package	12-WDFN (3x1)	Series	-
Packaging	Cut Tape (CT)	Package / Case	12-WFDFN
Other Names	NLAS3158MNR2GOSCT	Operating Temperature	-55°C ~ 125°C (TA)
On-State Resistance (Max)	13 Ohm	Number of Circuits	2
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	2 Circuit IC Switch 2:1 13 Ohm 12-WDFN (3x1)
Current - Leakage (IS(off)) (Max)	100nA	Crosstalk	-54dB @ 10MHz
Charge Injection	7pC	Channel-to-Channel Matching (ΔRon)	150 mOhm
Channel Capacitance (CS(off), CD(off))	2.3pF	Base Part Number	NLAS3158
-3db Bandwidth	250MHz
