NJL1302DG

AMI Semiconductor / ON Semiconductor

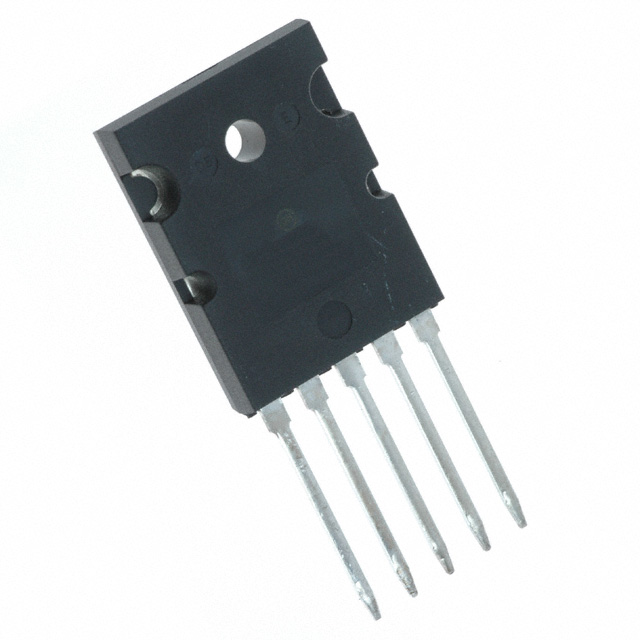

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NJL1302DG
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	TRANS PNP 260V 15A TO-264
Datasheets:	NJL1302DG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18246 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18246 pcs

Reference Price (In US Dollars)

1 pcs: $1.897

25 pcs: $1.609

100 pcs: $1.395

500 pcs: $1.187

1000 pcs: $1.001

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.897

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NJL1302DG

Part Number	NJL1302DG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS PNP 260V 15A TO-264	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18246 pcs	Data sheet	NJL1302DG.pdf
Voltage - Collector Emitter Breakdown (Max)	260V	Vce Saturation (Max) @ Ib, Ic	3V @ 1A, 10A
Transistor Type	PNP + Diode (Isolated)	Supplier Device Package	TO-264
Series	-	Power - Max	200W
Packaging	Tube	Package / Case	TO-264-5
Other Names	NJL1302DG-ND NJL1302DGOS	Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	30MHz	Detailed Description	Bipolar (BJT) Transistor PNP + Diode (Isolated) 260V 15A 30MHz 200W Through Hole TO-264
DC Current Gain (hFE) (Min) @ Ic, Vce	75 @ 5A, 5V	Current - Collector Cutoff (Max)	50µA (ICBO)
Current - Collector (Ic) (Max)	15A
