AMI Semiconductor / ON Semiconductor

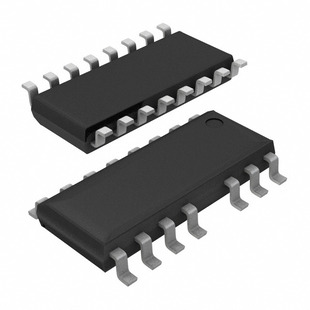

| Part Number | NCP1396BDR2G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC REG CTRLR ISO PWM VM 16-SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158156 pcs | Data sheet | NCP1396BDR2G.pdf |
| Voltage - Supply (Vcc/Vdd) | 9.5 V ~ 20 V | Voltage - Start Up | 10.5V |
| Voltage - Breakdown | - | Topology | Half-Bridge |
| Supplier Device Package | 16-SOIC | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Output Isolation | Isolated | Other Names | NCP1396BDR2GOS NCP1396BDR2GOS-ND NCP1396BDR2GOSTR |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 33 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | No |
| Frequency - Switching | 50kHz ~ 500kHz | Fault Protection | Over Temperature |
| Duty Cycle | 50% | Detailed Description | Converter Offline Half-Bridge Topology 50kHz ~ 500kHz 16-SOIC |
| Control Features | Frequency Control, Soft Start | Base Part Number | NCP1396 |
