NCP1336ADR2G

AMI Semiconductor / ON Semiconductor

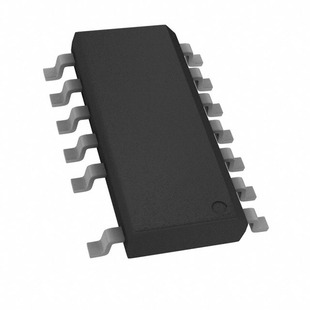

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP1336ADR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC REG CTRLR FLYBK ISO PWM
Datasheets:	NCP1336ADR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	198222 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 198222 pcs

Reference Price (In US Dollars)

2500 pcs: $0.182

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.182

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP1336ADR2G

Part Number	NCP1336ADR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC REG CTRLR FLYBK ISO PWM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	198222 pcs	Data sheet	NCP1336ADR2G.pdf
Voltage - Supply (Vcc/Vdd)	9 V ~ 28 V	Voltage - Start Up	15V
Voltage - Breakdown	-	Topology	Flyback
Supplier Device Package	14-SOIC	Series	-
Packaging	Tape & Reel (TR)	Package / Case	14-SOIC (0.154", 3.90mm Width), 13 Leads
Output Isolation	Isolated	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	No	Frequency - Switching	-
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit	Duty Cycle	-
Detailed Description	Converter Offline Flyback Topology 14-SOIC	Control Features	-
