NCL30186BDR2G

AMI Semiconductor / ON Semiconductor

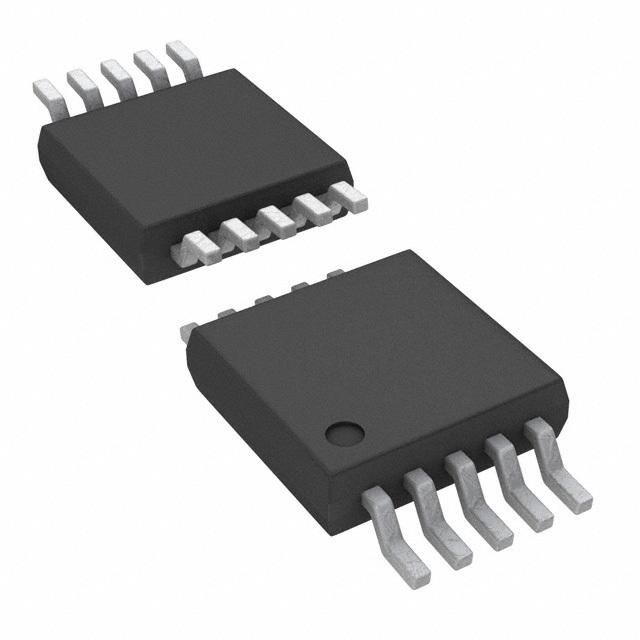

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCL30186BDR2G
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC LED DRVR OFFL PWM 10SOIC
Datasheets:	NCL30186BDR2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	180454 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 180454 pcs

Reference Price (In US Dollars)

2500 pcs: $0.182

5000 pcs: $0.172

12500 pcs: $0.166

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.182

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCL30186BDR2G

Part Number	NCL30186BDR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC LED DRVR OFFL PWM 10SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	180454 pcs	Data sheet	NCL30186BDR2G.pdf
Voltage - Supply (Min)	8.8V	Voltage - Supply (Max)	25.5V
Voltage - Output	-	Type	AC DC Offline Switcher
Topology	Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)	Supplier Device Package	10-SOIC
Series	-	Packaging	Tape & Reel (TR)
Package / Case	10-SOP (0.154", 3.90mm Width)	Other Names	NCL30186BDR2GOSTR
Operating Temperature	-40°C ~ 125°C (TJ)	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	No	Frequency	-
Dimming	Analog, PWM	Detailed Description	LED Driver IC 1 Output AC DC Offline Switcher Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 10-SOIC
Current - Output / Channel	-	Applications	Lighting
