NC7S14P5X

AMI Semiconductor / ON Semiconductor

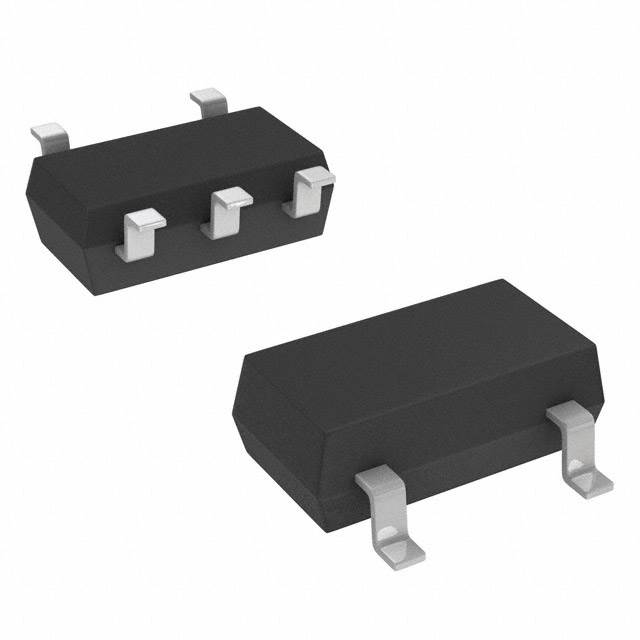

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NC7S14P5X
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC INVERTER SCHMITT 1CH SC70-5
Datasheets:	NC7S14P5X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	229308 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 229308 pcs

Reference Price (In US Dollars)

1 pcs: $0.13

10 pcs: $0.097

100 pcs: $0.055

500 pcs: $0.036

1000 pcs: $0.028

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.13

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NC7S14P5X

Part Number	NC7S14P5X	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC INVERTER SCHMITT 1CH SC70-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	229308 pcs	Data sheet	NC7S14P5X.pdf
Voltage - Supply	2 V ~ 6 V	Supplier Device Package	SC-70-5
Series	7S	Packaging	Cut Tape (CT)
Package / Case	5-TSSOP, SC-70-5, SOT-353	Other Names	NC7S14P5XCT
Operating Temperature	-40°C ~ 85°C	Number of Inputs	1
Number of Circuits	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Propagation Delay @ V, Max CL	17ns @ 6V, 50pF
Manufacturer Standard Lead Time	9 Weeks	Logic Type	Inverter
Logic Level - Low	0.3 V ~ 1.5 V	Logic Level - High	1.5 V ~ 4.2 V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Schmitt Trigger
Detailed Description	Inverter IC 1 Channel Schmitt Trigger SC-70-5	Current - Quiescent (Max)	1µA
Current - Output High, Low	2.6mA, 2.6mA	Base Part Number	7S14
