MOC8204M

AMI Semiconductor / ON Semiconductor

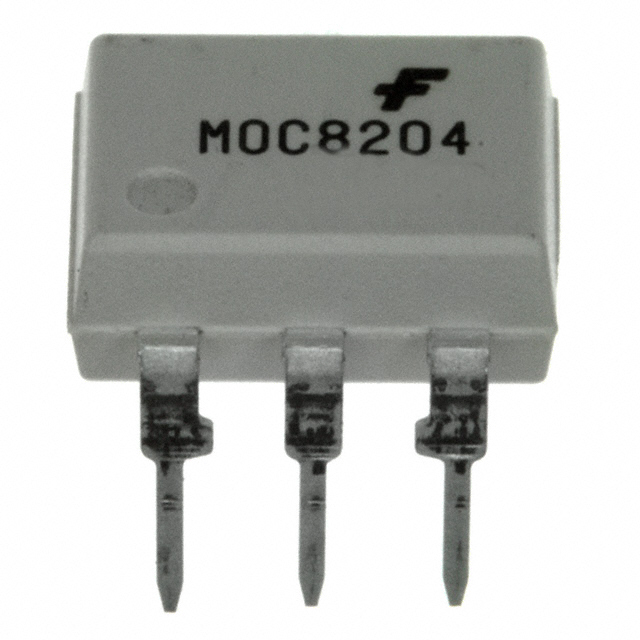

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MOC8204M
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.17KV TRANS W/BASE 6DIP
Datasheets:	MOC8204M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74610 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 74610 pcs

Reference Price (In US Dollars)

1 pcs: $0.517

10 pcs: $0.421

100 pcs: $0.292

500 pcs: $0.22

1000 pcs: $0.181

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.517

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MOC8204M

Part Number	MOC8204M	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.17KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74610 pcs	Data sheet	MOC8204M.pdf
Voltage - Output (Max)	400V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	5µs, 5µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Transistor with Base	Operating Temperature	-40°C ~ 100°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP	Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	100mA
Current - DC Forward (If) (Max)	80mA
