HomeProductsIsolatorsOptoisolators - Transistor, Photovoltaic OutputMOC8021SR2M

MOC8021SR2M

AMI Semiconductor / ON SemiconductorAMI Semiconductor / ON Semiconductor

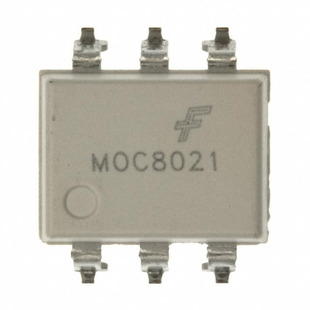

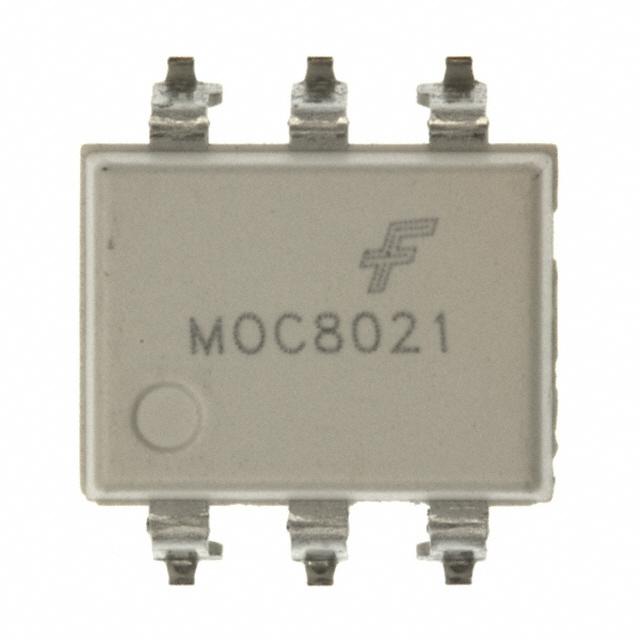

MOC8021SR2M Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: MOC8021SR2M
Manufacturer/Brand: AMI Semiconductor / ON Semiconductor
Product description OPTOISO 4.17KV DARLINGTON 6SMD
Datasheets: MOC8021SR2M.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5199 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 5199 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of MOC8021SR2M

Part Number MOC8021SR2M Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISO 4.17KV DARLINGTON 6SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5199 pcs Data sheet MOC8021SR2M.pdf
Voltage - Output (Max) 50V Voltage - Isolation 4170Vrms
Voltage - Forward (Vf) (Typ) 1.18V Vce Saturation (Max) -
Turn On / Turn Off Time (Typ) 8.5µs, 95µs Supplier Device Package 6-SMD
Series - Rise / Fall Time (Typ) -
Packaging Tape & Reel (TR) Package / Case 6-SMD, Gull Wing
Output Type Darlington Other Names MOC8021SR2MTR
Operating Temperature -40°C ~ 100°C Number of Channels 1
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type DC
Detailed Description Optoisolator Darlington Output 4170Vrms 1 Channel 6-SMD Current Transfer Ratio (Min) 1000% @ 10mA
Current Transfer Ratio (Max) - Current - Output / Channel 150mA
Current - DC Forward (If) (Max) 60mA
